SELECT A DIAGRAM

Cabinet Parts


Door Parts


Liner Parts


Optional Parts


Shelf Parts


Unit Parts

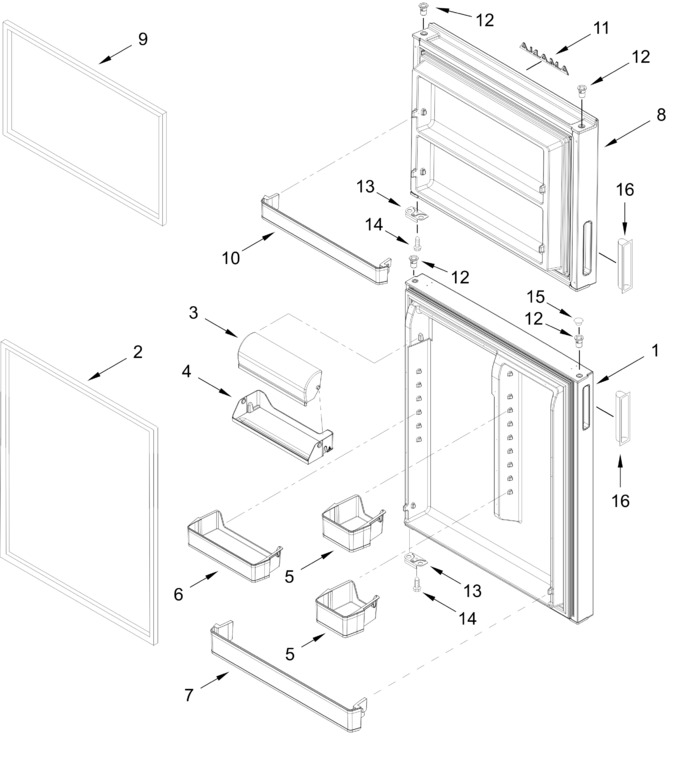

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826653		Door, Refrigerator (white, Includes Door Gasket And Handle Cup)   (Replaces: W11776735)		Appelez-nous	-
2	W10860480		Gasket, Door (white)   (Replaces: W11406596)				$ 278.77
3	W11675283		Compartment, Door   (Replaces: W10601425)				$ 30.91
4	W11829865		Bin, Rc Door Daily Base   (Replaces: W11700174)		Appelez-nous	-
5	W11835295		Bin, Rc Door (short)   (Replaces: W11757098)		Appelez-nous	-
6	W11818647		Bin, Door (large)   (Replaces: W11750599)				$ 50.84
7	W11829843		Bin, Rc Door (xl)   (Replaces: W11757085)		Appelez-nous	-
8	W11826369		Door, Freezer (black, Includes Door Gasket And Handle Cup)   (Replaces: W11776719)		Appelez-nous	-
9	W10741118		Gasket, Door (white)   (Replaces: W11406593)				$ 298.83
10	W11829864		Bin, Fc Door (xl)   (Replaces: W11757084)		Appelez-nous	-
11	W11428492		Badge (white)   (Replaces: W11046244)				$ 75.21
12	W11759045		Thimble, Top (white)   (Replaces: W10492018)			Immediately	$ 11.11
13	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
14	W10276642		Screw   (Replaces: 8533904)				$ 5.77
15	WP2212648		Plug, Hinge Hole (white)   (Replaces: 2212648)			Immediately	$ 7.37
16	W11818638		Handle, Cup (white)   (Replaces: W11759456)		Appelez-nous	-
	W11416038		Door Reversal Kit, White Model   (Replaces: W10662124)				$ 74.92
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
