View Diagram in Separate Window
Print Part List

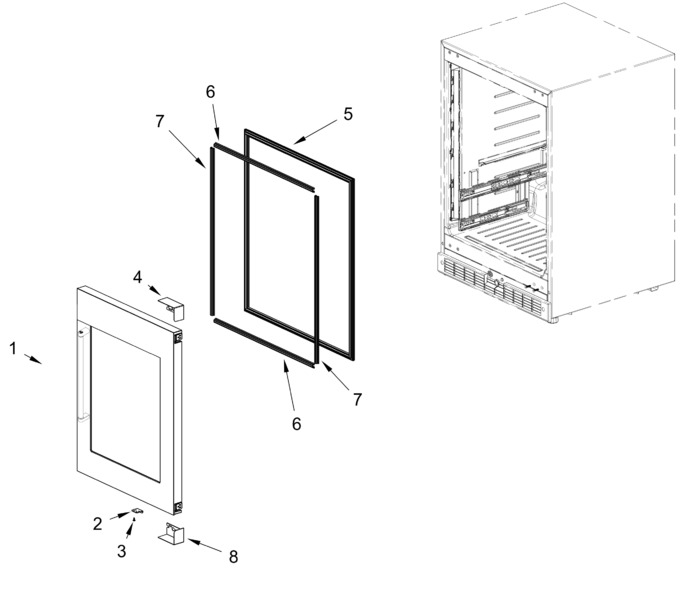

SELECT A DIAGRAM
Cabinet Parts
Door Parts
Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11795938 | Door Assembly (right Swing) (Replaces: W11790123) |
|
$ 1,181.71 | |||||
| 2 | W11807739 | Plate, Push (Replaces: W11721450) |
|
- | |||||
| 3 | W11675284 | Screw (Replaces: W11371095) |
|
$ 14.35 | |||||
| 4 | W11823878 | Cover, Door Hinge (top Right/bottom Left) (Replaces: W11822402) |
|
- | |||||
| 5 | W11747576 | Gasket. Door (Replaces: W11360668) |
|
Immediately | $ 89.21 | ||||
| 6 | W11774798 | Sash, Gasket (top/bottom) (Replaces: W11770530) |
|
Immediately | $ 105.57 | ||||
| 7 | W11360666 | Sash, Gasket (side) |
|
Immediately | $ 270.61 | ||||
| 8 | W11823914 | Cover, Door Hinge (bottom Right/top Left) (Replaces: W11822403) |
|
- |
