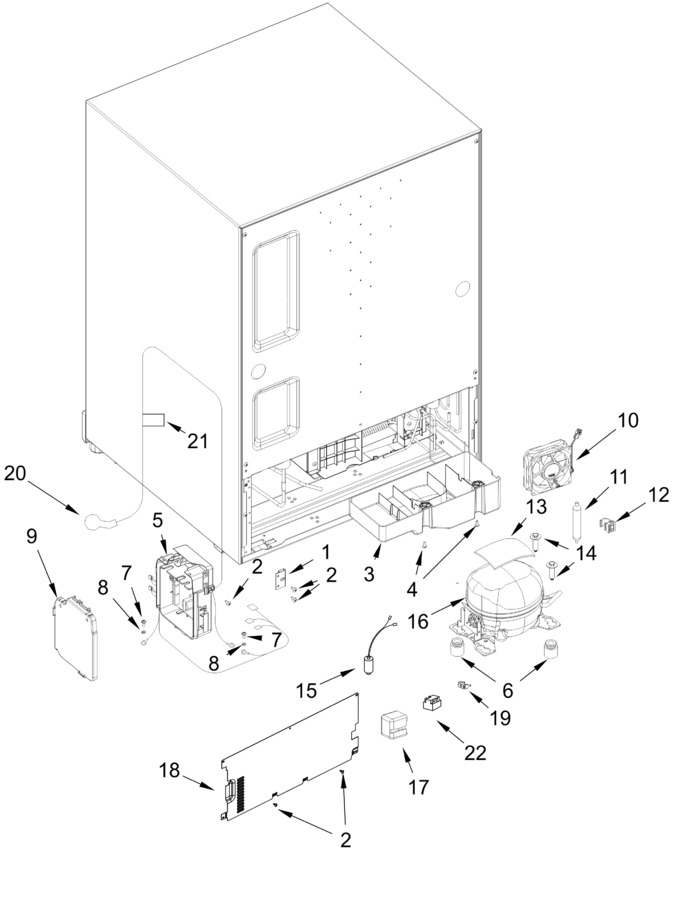

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11579515		Clamp, Cord   (Replaces: W11576947)		Appelez-nous	-
2	W11371097		Screw		Appelez-nous	-
3	W11538057		Pan, Water				$ 104.69
4	W11375763		Screw		Appelez-nous	-
5	W11756323		Box, Pcb   (Replaces: W11538049)			Immediately	$ 629.92
6	WP4344779		Grommet, Compressor   (Replaces: 4344779)				$ 7.62
7	4344826		Screw				$ 15.03
8	W11266077		Washer   (Replaces: W11265570)		Appelez-nous	-
9	W11313206		Cover, Pcb				$ 73.67
10	W11360536		Assembly, Fan Motor				$ 194.29
11	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 35.21
12	W11266075		Clamp   (Replaces: W11265569)		Appelez-nous	-
13	W11596025		Sound Pad, Compressor   (Replaces: W11360595)				$ 34.44
14	W10772873		Bolt, Compressor   (Replaces: 4344780)		Appelez-nous	-
15	W11538053		Capacitor				$ 88.51
16	W11817962		Compressor   (Replaces: W11538055)				$ 584.34
17	W11579581		Cover   (Replaces: W11568820)		Appelez-nous	-
18	W11568821		Panel, Cover		Appelez-nous	-
19	W11683120		Protector, Motor   (Replaces: W11614617)		Appelez-nous	-
20	W11618463		Assembly, Power Cord			Immediately	$ 119.22
21	W11774698		Cord, Power   (Replaces: W11740249)		Appelez-nous	-
22	WP2262181		Ptc Relay   (Replaces: W11614619)				$ 115.90
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
	ARI7F21E2684783037DC10D795033CD2ABA		48 Grams (r600a)		Appelez-nous	-
