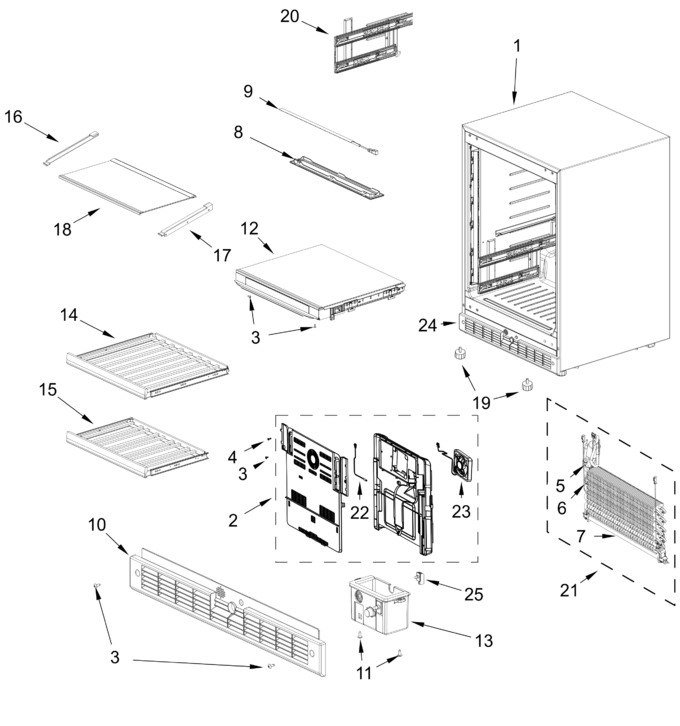

SELECT A DIAGRAM

Cabinet Parts


Door Parts


Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI1D3F6AB8AF557BDC6BAF811BFA727375		Cabinet (not A Service Part)		Appelez-nous	-
2	W11364212		Assembly, Evaporator Cover (includes Fan Motor, Damper And Sensor)				$ 338.00
3	W11675284		Screw   (Replaces: W11371095)				$ 14.35
4	W11375760		Screw		Appelez-nous	-
5	W11266076		Sensor, Defrost   (Replaces: W11263884)				$ 109.50
6	W11359415		Fuse, Temperature				$ 98.35
7	W11359416		Defrost Holder And Heater		Appelez-nous	-
8	W11312450		Cover, Led		Appelez-nous	-
9	W11497301		Assembly, Led   (Replaces: W11492253)				$ 73.85
10	W11795046		Kick Plate   (Replaces: W11790119)		Appelez-nous	-
11	W11371097		Screw		Appelez-nous	-
12	W11795045		Separator   (Replaces: W11790118)		Appelez-nous	-
13	W11359433		Assembly, Switch Box				$ 137.60
14	W11809304		Wine Rack, Upper   (Replaces: W11809296)		Appelez-nous	-
15	W11532977		Wine Rack, Lower				$ 459.23
16	W10797332		Support, Shelf (left Hand)				$ 27.14
17	W10797333		Support, Shelf (right Hand)				$ 27.14
18	W11538058		Tray, Glass				$ 92.33
19	W11106296		Leg, Leveling   (Replaces: 4344763)				$ 17.13
20	W11747998		Glides, Wine Rack (left)   (Replaces: W11747923)		Appelez-nous	-
21	W11800041		Evaporator And Heater Assembly   (Replaces: W11798697)				$ 325.88
22	W11747626		Sensor Pcc (upper)   (Replaces: W11728555)		Appelez-nous	-
23	W11361412		Fan Motor Assembly, Evaporator		Appelez-nous	-
24	W11795048		Bracket, Kick Plate   (Replaces: W11790121)		Appelez-nous	-
25	W11266082		Switch, Door   (Replaces: W11265587)			Immediately	$ 36.73
	W11747999		Glides, Wine Rack (right)   (Replaces: W11747924)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
