Burner Box And Griddle Parts


Chassis Parts (48 In)


Cooktop, Burner, And Grate Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts

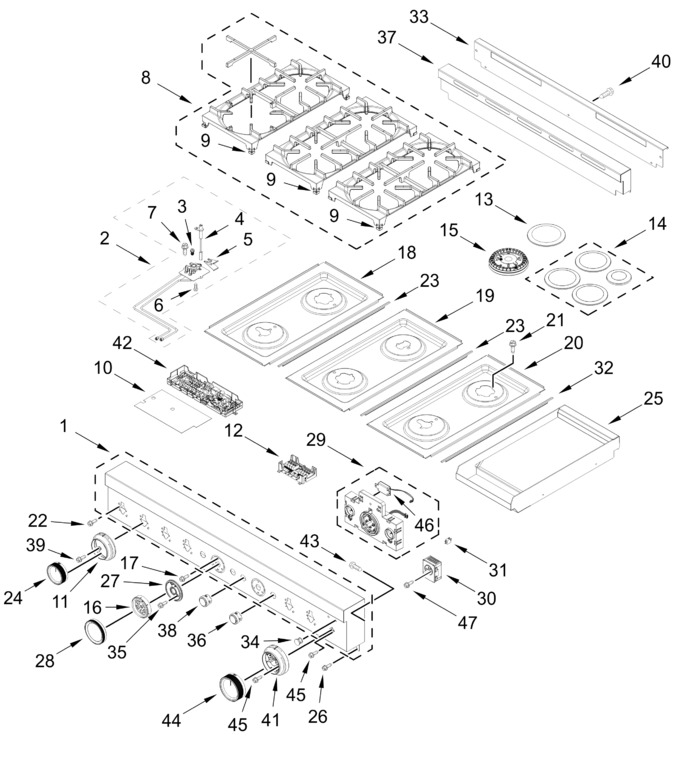

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11822567		Control Panel   (Replaces: W11768466)		Appelez-nous	-
2	W11805919		Orifice Holder Assembly   (Replaces: W11775872)		Appelez-nous	-
3	ARIE067872F6F52DD2FD69D26241530A01D		Orifice (not Serviced, Must Order Orifice Holder Assembly)		Appelez-nous	-
4	W11788750		Igniter   (Replaces: W11759723)			Immediately	$ 32.23
5	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 11.39
6	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 13.28
7	3196172		Screw			Immediately	$ 12.12
8	W11789234		Grate Burner Kit				$ 509.18
9	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 11.31
10	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 117.51
11	W11820146		Bezel Assembly, Gas Burner (black Ore)   (Replaces: W11801797)		Appelez-nous	-
12	W11355250		Manager, Appliance (expansion)   (Replaces: W10871065)				$ 406.46
13	W11576413		Cap, Stack Burner (black)   (Replaces: W11346163)				$ 80.33
14	W11789675		Cap, Burner (black, Set Of 4)   (Replaces: W11748806)		Appelez-nous	-
15	W11436986		Flame Spreader, Stack   (Replaces: W11348511)			Immediately	$ 124.90
16	W11823741		Knob, Oven Mode (black Ore)   (Replaces: W11752312)		Appelez-nous	-
17	W10162096		Screw				$ 19.71
18	W11788773		Panel, Left Cooktop (black)   (Replaces: W11758655)		Appelez-nous	-
19	W11789677		Panel, Center Cootkop (black)   (Replaces: W11758657)				$ 382.72
20	W11789786		Panel, Right Cooktop (black)   (Replaces: W11758659)		Appelez-nous	-
21	W11788768		Screw   (Replaces: W11719156)		Appelez-nous	-
22	W11674763		Screw   (Replaces: W10919387)				$ 13.28
23	W10271524		Trim, T-strip (black)				$ 191.11
24	W11820149		Knob, Dual (black Ore)   (Replaces: W11732026)		Appelez-nous	-
25	ARI4865CFF8563D5F77A3C528079CFC39A7		Griddle Module Assembly (part Number Shown On Burner Box And Griddle Parts Page)		Appelez-nous	-
26	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
27	W11820163		Bezel Assembly, Oven (black Ore)   (Replaces: W11738553)		Appelez-nous	-
28	W11823742		Knob, Oven Temperature (black Ore)   (Replaces: W11752296)		Appelez-nous	-
29	W11790545		Interface, User   (Replaces: W11777687)		Appelez-nous	-
30	W11318834		Control, Griddle   (Replaces: W11033497)			Immediately	$ 320.87
31	W10116114		Light, Indicator Housing			Immediately	$ 84.21
32	W10291193		Trim, L-strip		Appelez-nous	-
33	W10323252		Trim, Island Insert				$ 187.05
34	W10294500		Lens, Indicator Light				$ 6.92
35	W11788785		Screw   (Replaces: W11755190)		Appelez-nous	-
36	W11820147		Button Assembly, Oven Start (black Ore)   (Replaces: W11769831)		Appelez-nous	-
37	W11516014		Island Trim   (Replaces: W11476244)				$ 399.24
38	W11820165		Button Assembly, Oven Light (black Ore)   (Replaces: W11769833)		Appelez-nous	-
39	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
40	7101P33860		Screw		Appelez-nous	-
41	W11822558		Bezel, Griddle (black Ore)   (Replaces: W11741958)		Appelez-nous	-
42	W11790550		Manager, Powermax Appliance   (Replaces: W11777697)		Appelez-nous	-
43	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
44	W11822559		Knob, Griddle (black Ore)   (Replaces: W11732240)		Appelez-nous	-
45	7101P30960		Screw		Appelez-nous	-
46	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 72.84
47	WPW10254050		Screw   (Replaces: W10254050)				$ 8.30
	ARI2DF9F568FCE4D6018097574F1022E13B		(right Center Rear)		Appelez-nous	-
	W11531098		Flame Spreader   (Replaces: W11352197)				$ 72.65
	W11820164		Knob, Oven Temperature (black Ore)   (Replaces: W11740404)		Appelez-nous	-
	W11820150		Knob, Single (black Ore)   (Replaces: W11731286)		Appelez-nous	-
	ARI03CD409BD699D70C62A402990434B427		(for 6 Cooktop Burners)		Appelez-nous	-
	ARI8C7BF12CCD21B32D58AD00F381DE6E87		(left Center Front)		Appelez-nous	-
	W11805920		Orifice Holder Assembly   (Replaces: W11775873)		Appelez-nous	-
	ARIC0A1423F8DB18A76A62C2589F952DA0B		(left Center Front, Left Center Rear, Right Center Rear)		Appelez-nous	-
	ARI91512E59DD97B6DE955CDC6C52849EDE		(right Center Front)		Appelez-nous	-
	W11788751		Igniter   (Replaces: W11759741)		Appelez-nous	-
	W11789780		Orifice Holder Assembly   (Replaces: W11731199)		Appelez-nous	-
	W11789779		Orifice Holder Assembly   (Replaces: W11731193)		Appelez-nous	-
	ARI1E01456C21FFBF0D8455E89259237D34		(for 30 In Oven)		Appelez-nous	-
	W11789781		Orifice Holder Assembly   (Replaces: W11731202)		Appelez-nous	-
	W11789783		Orifice Holder Assembly   (Replaces: W11731196)		Appelez-nous	-
	ARI13639990676F4BCB7E963B79A24869B9		(left Center Rear)		Appelez-nous	-
	W11788752		Igniter   (Replaces: W11759742)		Appelez-nous	-
	ARI84ED65FEA174F07BF8F003F72E5F11AC		(left Front, Right Center Front)		Appelez-nous	-
	ARICC315D341C2410B1C23C8B42A71BD901		(left Rear, Left Center Front, Left Center Rear, Right Center Rear)		Appelez-nous	-
	ARIE201EE7BE318B20F5A8E22F5F2B645F9		(for 18 In Oven)		Appelez-nous	-
	W11531096		Flame Spreader   (Replaces: W11352193)				$ 73.73
	ARI3CCC6EF4AF791FA50D2D2DAAC8BCDBD4		(for 2 Oven Knobs)		Appelez-nous	-
	ARI1D437A95BB9951E88D2C823ABD70D6CC		(left Rear, Left Center Front, Right Center Rear)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	W11820148		Knob, Oven Mode (black Ore)   (Replaces: W11758666)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
