SELECT A DIAGRAM

Cabinet Parts


Door Parts


Liner Parts


Optional Parts


Shelf Parts


Unit Parts

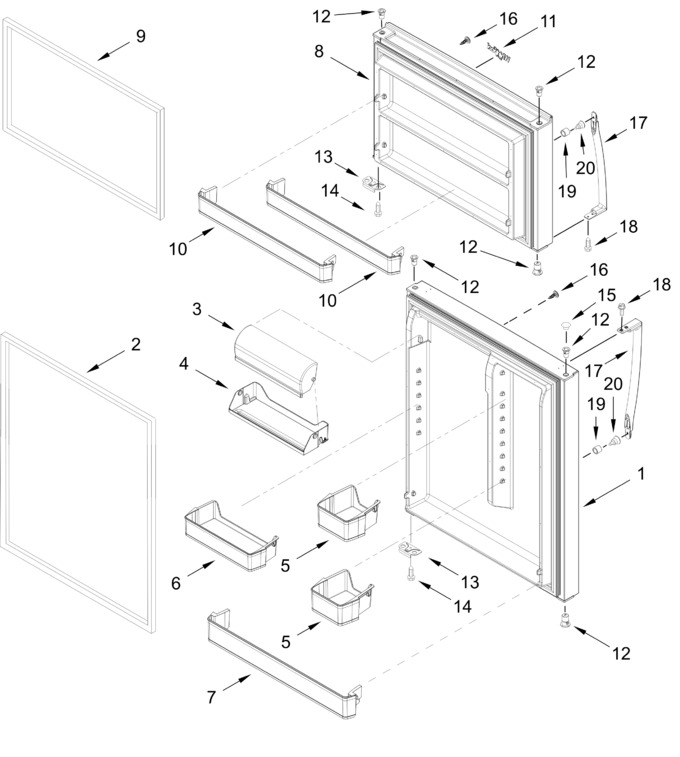

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826656		Door, Refrigerator (black, Includes Door Gasket)   (Replaces: W11776727)		Appelez-nous	-
2	2177311		Gasket, Door (black)   (Replaces: W11406604)				$ 297.86
3	W11675283		Compartment, Door   (Replaces: W10601425)				$ 30.91
4	W11829865		Bin, Rc Door Daily Base   (Replaces: W11700174)		Appelez-nous	-
5	W11829842		Bin, Rc Door (short)   (Replaces: W11757100)		Appelez-nous	-
6	W11807631		Bin, Rc Door (large)   (Replaces: W11750600)				$ 50.84
7	W11829843		Bin, Rc Door (xl)   (Replaces: W11757085)		Appelez-nous	-
8	W11826372		Door, Freezer (black, Includes Door Gasket)   (Replaces: W11776712)		Appelez-nous	-
9	2177310		Gasket, Door (black)   (Replaces: W11406601)				$ 301.78
10	W11829864		Bin, Fc Door (xl)   (Replaces: W11757084)		Appelez-nous	-
11	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
12	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 11.44
13	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
14	W10276642		Screw   (Replaces: 8533904)				$ 5.77
15	WP2212651		Plug, Hinge Hole (black)   (Replaces: 2212651)				$ 21.79
16	W10830983		Hole, Plug (black)   (Replaces: W10663737)				$ 17.59
17	W10839425		Handle, Door (black)   (Replaces: W10656973)				$ 153.05
18	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
19	WPW10511911		Bushing, Handle   (Replaces: W10511911)				$ 14.50
20	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.69
	W11415957		Door Reversal Kit, Black Model   (Replaces: W10676239)				$ 72.40
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
