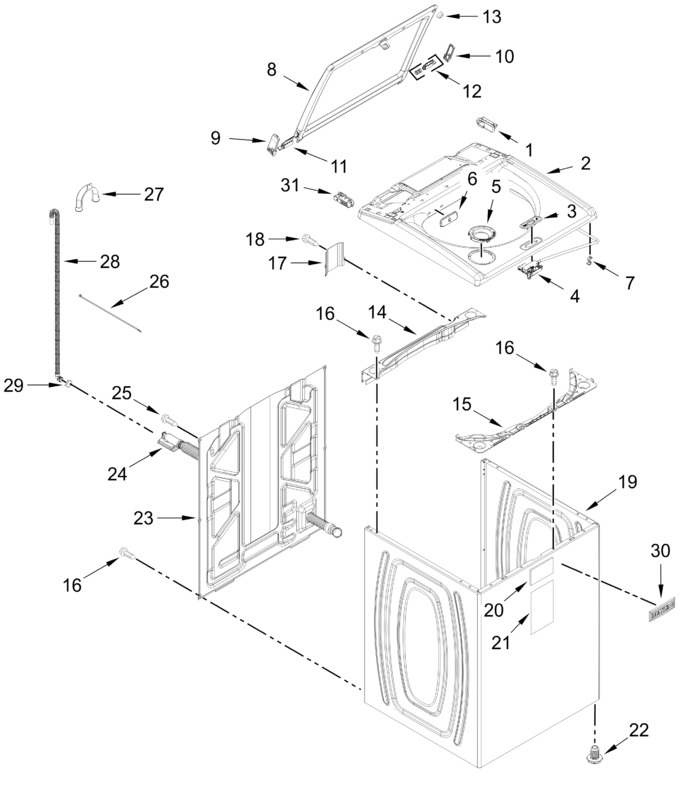

Basket And Tub Parts
Console And Water Inlet Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11638181 | Hinge, Spacer Right (Replaces: W11391491) |
|
Immediately | $ 16.43 | ||||
| 2 | W11513254 | Top (white) (Replaces: W11391478) |
|
$ 350.16 | |||||
| 3 | W11643703 | Bezel, Lid Lock (Replaces: W11403468) |
|
Immediately | $ 27.24 | ||||
| 4 | W11670519 | Lid Lock Latch Assembly (Replaces: W11368616) |
|
Immediately | $ 68.06 | ||||
| 5 | W11234069 | Bleach Dispenser (white) (Replaces: W11171193) |
|
$ 93.82 | |||||
| 6 | W11396263 | Bezel, Faucet |
|
$ 26.99 | |||||
| 7 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.70 | |||||
| 8 | W11627419 | Lid Assembly (white) (Replaces: W11424116) |
|
Immediately | $ 347.25 | ||||
| 9 | W11627504 | Left Hinge, Cover (Replaces: W11424114) |
|
$ 20.85 | |||||
| 10 | W11627505 | Right Hinge, Cover (Replaces: W11424111) |
|
- | |||||
| 11 | W11627502 | Left Hinge, Damper (Replaces: W11554337) |
|
$ 56.44 | |||||
| 12 | W11627503 | Right Hinge Spring (Replaces: W11597671) |
|
$ 57.53 | |||||
| 13 | W11483871 | Bumper, Door |
|
- | |||||
| 14 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 93.49 | |||||
| 15 | W11381327 | Channel, Top Front |
|
Immediately | $ 70.65 | ||||
| 16 | W11568617 | Screw (Replaces: W10567155) |
|
$ 13.25 | |||||
| 17 | W10676061 | Cover, Harness |
|
$ 33.09 | |||||
| 18 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 19 | W10676680 | Cabinet (white) |
|
$ 366.17 | |||||
| 20 | WP8564458 | Absorber, Impact (small) (Replaces: 8564458) |
|
Immediately | $ 7.54 | ||||
| 21 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 21.04 | ||||
| 22 | W11213957 | Foot Leveling Assembly (Replaces: W11179235) |
|
Immediately | $ 12.82 | ||||
| 23 | W11486091 | Panel, Rear (Replaces: W11417173) |
|
Immediately | $ 294.95 | ||||
| 24 | W11735315 | Inner Drain Hose Assembly (Replaces: W11687191) |
|
$ 45.08 | |||||
| 25 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 26 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 27 | WPW10280024 | U-bend, Drain Hose (Replaces: W11705656) |
|
$ 75.16 | |||||
| 28 | W11764699 | Outer Drain Hose (Replaces: W11703202) |
|
$ 36.89 | |||||
| 29 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 30 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 31 | W11638180 | Hinge, Spacer Left (Replaces: W11391489) |
|
Immediately | $ 16.43 |
