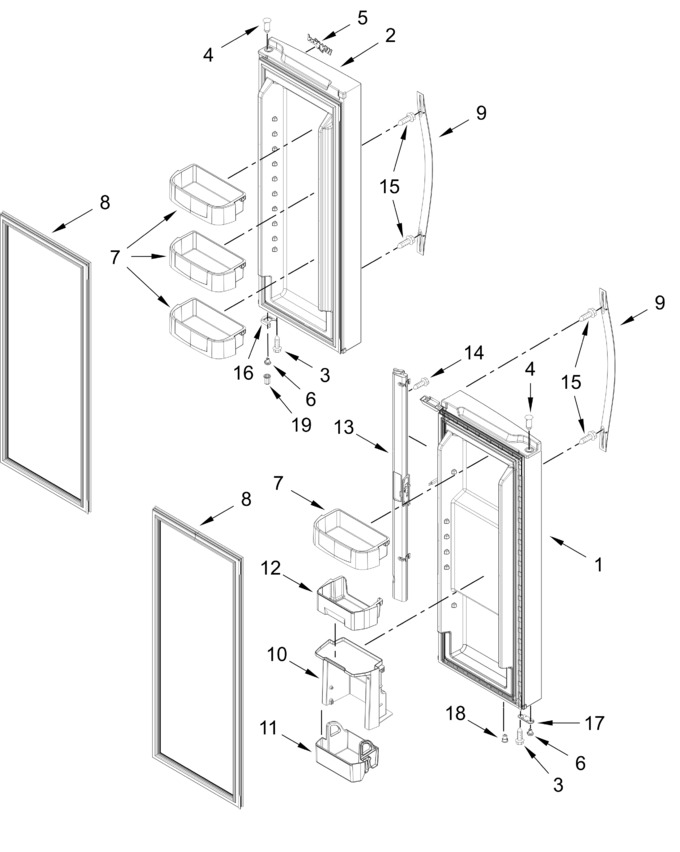

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11623349		Left Door Assembly, Stainless (includes Door Gasket)   (Replaces: W11525214)				$ 1,081.16
2	LW10858417		Right Door Assembly, Stainless (includes Door Gasket)   (Replaces: W10858417)				$ 840.29
3	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
4	W11544568		Thimble, Top   (Replaces: W10366270)			Immediately	$ 13.95
5	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
6	WPW10470155		Closure, Door   (Replaces: W10470155)			Immediately	$ 7.55
7	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 77.70
8	WPW10460580		Gasket, Door (grey)   (Replaces: W10413468)			Immediately	$ 268.75
9	W11163764		Handle, Door (stainless)   (Replaces: W11045530)			Immediately	$ 183.31
10	WPW10317224		Compartment, Utility   (Replaces: W10317224)				$ 103.80
11	W11106787		Caddy, Condiment   (Replaces: W10462299)			Immediately	$ 106.98
12	WPW10326335		Bin, Shallow   (Replaces: W10326335)			Immediately	$ 64.79
13	WPW10624450		Mullion Assembly (grey)   (Replaces: W10624450)			Immediately	$ 237.78
14	W10854958		Screw   (Replaces: 12990302)				$ 7.90
15	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
16	WPW10397055		Bracket, Door Stop   (Replaces: W10397055)			Immediately	$ 36.94
17	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
18	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 12.71
19	WP67002731		Bushing, Door (black)   (Replaces: 12028601B)			Immediately	$ 8.24
	ARI918EA51C669253CD37B34596C035B44C		Left Hand		Appelez-nous	-
	ARIF959192793ABCBAD1A31237D162F5226		(right Hand)		Appelez-nous	-
