Basket And Tub Parts
Console Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:

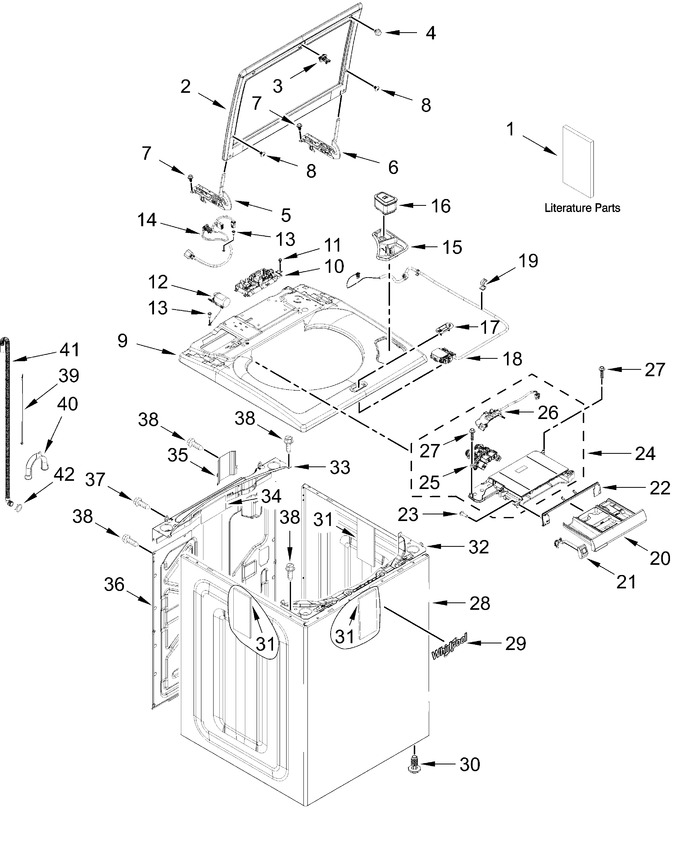

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11413336 | Lid Assembly (glass, Grey) (Replaces: W11113665) |
|
Immediately | $ 401.85 | ||||
| 3 | W11721071 | Assembly, Strike (Replaces: W11533683) |
|
Immediately | $ 7.34 | ||||
| 4 | W11398707 | Bumper, Lid (Replaces: W10631074) |
|
Immediately | $ 20.97 | ||||
| 5 | W11551369 | Hinge, Lid (left) (Replaces: W11128305) |
|
Immediately | $ 103.46 | ||||
| 6 | W11551376 | Hinge, Lid (right) (Replaces: W11128306) |
|
Immediately | $ 109.73 | ||||
| 7 | WP489128 | Screw (Replaces: W10142728) |
|
$ 10.26 | |||||
| 8 | W11679612 | Screw (Replaces: W11183686) |
|
$ 13.49 | |||||
| 9 | W11423772 | Top (white) (Replaces: W11126901) |
|
Immediately | $ 343.29 | ||||
| 10 | W11771929 | Machine And Motor Control Unit Assembly (Replaces: W11749385) |
|
$ 348.81 | |||||
| 11 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 12 | W11638178 | Assembly, Line Filter (Replaces: W11296733) |
|
$ 78.05 | |||||
| 13 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 14 | W11551294 | Power Cord (Replaces: W11112935) |
|
Immediately | $ 37.36 | ||||
| 15 | W11662175 | Bleach Dispenser (grey) (Replaces: W11175768) |
|
$ 27.77 | |||||
| 16 | W11416456 | Brush, Scrub (Replaces: W11175764) |
|
Immediately | $ 13.52 | ||||
| 17 | W11545554 | Lid Lock Bezel (white) (Replaces: W11215078) |
|
Immediately | $ 20.07 | ||||
| 18 | W11700916 | Lid Lock Assembly (Replaces: W11543566) |
|
Immediately | $ 68.71 | ||||
| 19 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.70 | |||||
| 20 | W11611449 | Dispenser Drawer Assembly (grey) (Replaces: W11239953) |
|
$ 74.03 | |||||
| 21 | W11662334 | Faucet Switch Assembly (grey) (Replaces: W11246872) |
|
$ 58.05 | |||||
| 22 | W11375989 | Dispenser Bezel Assembly (grey) |
|
$ 27.18 | |||||
| 23 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 24 | W11614513 | Dispenser Housing And Inlet Valve Assembly (Replaces: W11570268) |
|
Immediately | $ 179.44 | ||||
| 25 | W11614515 | Valve, Water Inlet (Replaces: W11528768) |
|
Immediately | $ 159.53 | ||||
| 26 | W11524850 | Harness, Valve |
|
$ 62.33 | |||||
| 27 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 7.92 | ||||
| 28 | W10676680 | Cabinet (white) |
|
$ 366.17 | |||||
| 29 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 30 | W11213957 | Foot Assembly, Leveling (Replaces: W11179235) |
|
Immediately | $ 12.82 | ||||
| 31 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 21.04 | ||||
| 32 | W11381327 | Channel, Top Front |
|
Immediately | $ 70.65 | ||||
| 33 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 93.49 | |||||
| 34 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 7.54 | ||||
| 35 | W10676061 | Cover, Harness |
|
$ 33.09 | |||||
| 36 | W11486091 | Panel, Rear (Replaces: W11417173) |
|
Immediately | $ 294.95 | ||||
| 37 | W11568617 | Screw (Replaces: W10567155) |
|
$ 13.25 | |||||
| 38 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 39 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 40 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 75.16 | |||||
| 41 | W11244231 | Hose, Outer Drain Assembly (Replaces: W11203364) |
|
Immediately | $ 28.86 | ||||
| 42 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| W11559688 | Lid Lock Bezel (grey) (Replaces: W11215091) |
|
Immediately | $ 27.26 | |||||
| W11720302 | Energy Guide |
|
- | ||||||
| W11423770 | Top, (chrome Shadow) (Replaces: W11126902) |
|
Immediately | $ 344.56 | |||||
| W10676681 | Cabinet (chrome Shadow) |
|
$ 438.61 | ||||||
| W11646252 | Owners Manual |
|
- | ||||||
| W11646516 | Quick Start Guide |
|
- |
