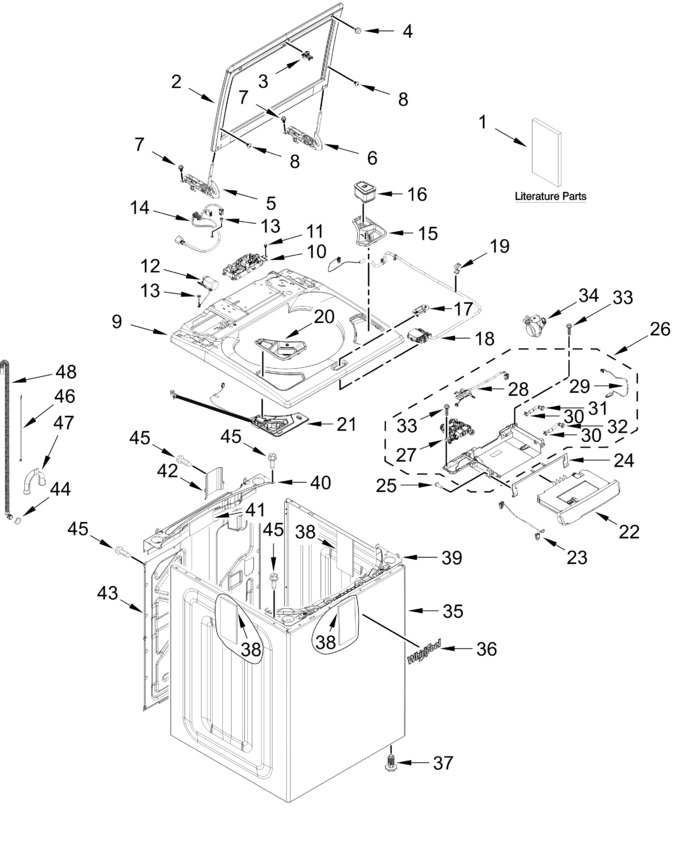

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Basket And Tub Parts
Console Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | W11789818 | Assembly, Strike (Replaces: W11720849) |
|
$ 27.12 | |||||
| 5 | W11789527 | Hinge, Lid (left) (Replaces: W11701943) |
|
Immediately | $ 87.91 | ||||
| 6 | W11789526 | Hinge, Lid (right) (Replaces: W11701944) |
|
Immediately | $ 85.32 | ||||
| 10 | W11834063 | Machine And Motor Control Unit Assembly (Replaces: W11751623) |
|
$ 387.57 | |||||
| 17 | W11789528 | Lid Lock Bezel (white) (Replaces: W11468804) |
|
$ 25.31 | |||||
| 18 | W11670519 | Latch, Lid Lock Assembly (Replaces: W11368616) |
|
Immediately | $ 75.62 | ||||
| 19 | W11789525 | Clip, Harness (Replaces: W11655398) |
|
- | |||||
| 23 | W11789512 | Harness, Dispenser (Replaces: W11741980) |
|
- | |||||
| W11789521 | Lid Lock Bezel (grey) (Replaces: W11468811) |
|
$ 26.19 |
