Air Flow Parts


Cabinet Parts


Dispenser Parts


Freezer Door Parts


Freezer Liner Parts


Motor And Ice Container Parts


Optional Parts (not Included)


Refrigerator Door Parts


Refrigerator Liner Parts


Refrigerator Shelf Parts


Unit Parts

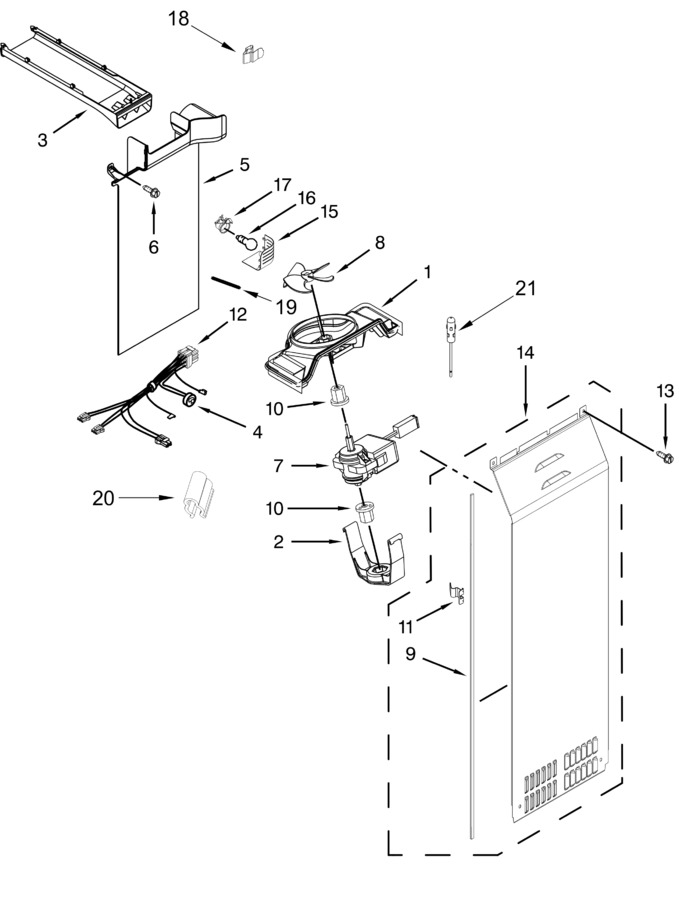

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11807265		Scroll, Fan   (Replaces: W10251462)				$ 30.70
2	8201663		Retainer, Fan Motor   (Replaces: 2223733)				$ 159.27
3	W11040868		Duct, Upper Air				$ 101.89
4	ARI19ED5D80872328754654B700CD457BD5		Bi-metal Defrost (not Serviced)		Appelez-nous	-
5	W11746091		Duct, Freezer Air   (Replaces: W10260384)		Appelez-nous	-
6	WP489478		Screw   (Replaces: W10001260)				$ 8.18
7	W11833137		Motor, Fan   (Replaces: W11243741)			Immediately	$ 119.39
8	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
9	W10240370		Gasket, Evaporator Cover		Appelez-nous	-
10	W11669856		Grommet, Motor   (Replaces: W10449920)			Immediately	$ 15.93
11	W11232019		Clip, Evaporator Cover   (Replaces: W10369602)			Immediately	$ 11.39
12	W11566892		Assembly, Evaporator Fan Wire   (Replaces: W11314873)				$ 77.77
13	WP693995		Screw   (Replaces: W10142292)			Immediately	$ 7.55
14	WPW10388269		Cover, Evaporator   (Replaces: W10388269)				$ 242.39
15	W10260382		Cover, Light				$ 80.58
16	W11216993		Lamp, Led   (Replaces: W11125625)			Immediately	$ 52.46
17	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
18	W10331728		Clip, Air Duct				$ 81.19
19	W11205489		Foam, Fc Scroll Fan		Appelez-nous	-
20	W11546684		Clip, Evaporator Thermistor   (Replaces: W11437914)			Immediately	$ 12.33
21	WPW10384183		Thermistor   (Replaces: W10384183)			Immediately	$ 118.47
