Dispenser Parts
Door Parts
Optional Parts (not Included)
Top And Cabinet Parts
Tub And Basket Parts
Water System Parts
SELECT A DIAGRAM
New Model Search:

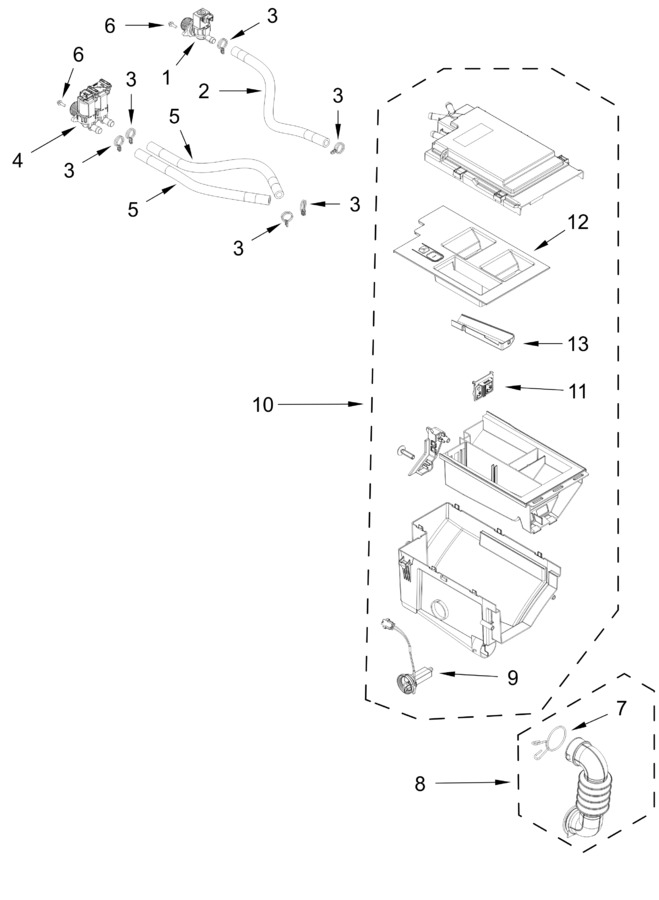

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11688994 | Valve, Inlet (single) (Replaces: W11036928) |
|
Immediately | $ 112.51 | ||||
| 2 | W11316257 | Hose, Inlet (hot) (Replaces: W10920135) |
|
Immediately | $ 34.37 | ||||
| 3 | WP596669 | Clamp, Hose (Replaces: W10096851) |
|
Immediately | $ 8.82 | ||||
| 4 | W11688995 | Valve, Inlet (double) (Replaces: W11036930) |
|
Immediately | $ 114.28 | ||||
| 5 | W11316599 | Hose, Inlet (cold) (Replaces: W10920133) |
|
$ 34.39 | |||||
| 6 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 7 | W10239910 | Clamp, Hose |
|
Immediately | $ 65.30 | ||||
| 8 | W11316604 | Dispenser Hose Assembly (Replaces: W10920132) |
|
Immediately | $ 26.33 | ||||
| 9 | W11316376 | Detergent Sensor Assembly (Replaces: W11041160) |
|
$ 223.67 | |||||
| 10 | W11752344 | Drawer Dispenser Assembly (Replaces: W11709301) |
|
Immediately | $ 121.12 | ||||
| 11 | W11316603 | Separator, Siphon (Replaces: W10918519) |
|
$ 71.62 | |||||
| 12 | W11772011 | Siphon, Bleach/softener (Replaces: W11709299) |
|
$ 99.48 | |||||
| 13 | W11316375 | Cover, Detergent Drawer (Replaces: W11106522) |
|
$ 81.70 |
