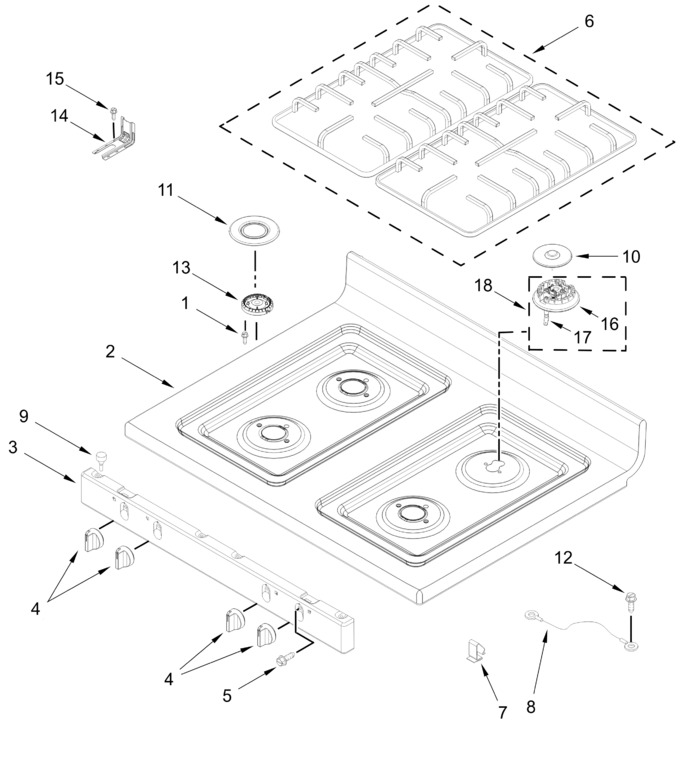

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 7.70
2	W11032725		Cooktop (black)   (Replaces: W10818512)		Appelez-nous	-
3	W11844158		Panel, Manifold (stainless)   (Replaces: W11822714)		Appelez-nous	-
4	W11841826		Knob (stainless)   (Replaces: W11812787)		Appelez-nous	-
5	W10837731		Screw   (Replaces: W10493726)				$ 7.47
6	W11815244		Grate Set (black)		Appelez-nous	-
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 11.20
8	3184020		Wire, Ground   (Replaces: 6610473)				$ 78.23
9	W10831827		Bumper, Cooktop   (Replaces: 98013389)		Appelez-nous	-
10	WPW10169985		Burner, Cap (black)   (Replaces: W10169985)				$ 59.99
11	WP98017461		Burner, Cap (black)   (Replaces: 98017461)				$ 63.79
12	W10850756		Screw, Ground   (Replaces: 8534079)				$ 7.38
13	WPW10636224		Spreader, Flame   (Replaces: W10636224)			Immediately	$ 62.19
14	WPW10613666		Bracket, Anti-tip   (Replaces: W10613666)				$ 16.16
15	7101P48560		Screw, Anti-tip		Appelez-nous	-
16	WPW10406243		Head, Burner (6k)   (Replaces: W10406243)			Immediately	$ 35.17
17	WPW10515459		Electrode   (Replaces: W10515459)			Immediately	$ 39.39
18	WPW10515453		Spreader Flame, Assembly   (Replaces: W10515453)				$ 89.36
	ARI1A69B24F704D11F8C282EC7A19A677A2		(left Front, Left, Rear, Right Front)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 30.09
	W11620511		Insulation, Manifold   (Replaces: W11492747)		Appelez-nous	-
	98005896		Clip, Wire		Appelez-nous	-
	W11841818		Main Harness   (Replaces: W11809274)		Appelez-nous	-
	98015022		Bushing, Snap		Appelez-nous	-
