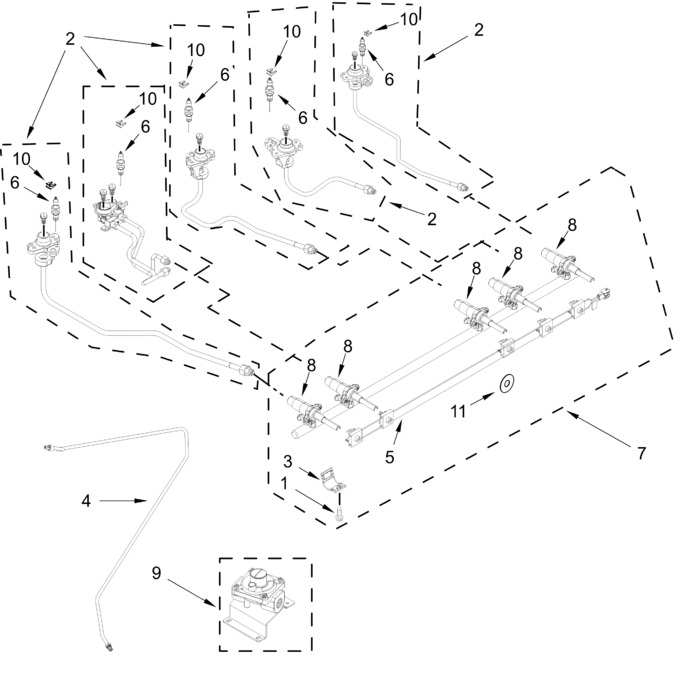

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.59 | |||||
| 2 | W11445309 | Orifice Assembly (19k) (Replaces: W11186513) |
|
Immediately | $ 97.02 | ||||
| 3 | W10949105 | Bracket, Saddle Valve |
|
$ 20.48 | |||||
| 4 | W10552945 | Tube, Supply |
|
$ 84.82 | |||||
| 5 | W11376663 | Harness, Switch Spark (Replaces: W10432517) |
|
Immediately | $ 169.38 | ||||
| 6 | W11675301 | Electrode, Burner (Replaces: W10898387) |
|
Immediately | $ 31.78 | ||||
| 7 | W11679667 | Manifold Assembly (Replaces: W11356345) |
|
$ 349.05 | |||||
| 8 | W11109973 | Valve, Gas Duel (Replaces: W10432224) |
|
Immediately | $ 229.33 | ||||
| 9 | W10661850 | Regulator And Bracket, Assembly |
|
$ 118.13 | |||||
| 10 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 11.39 | ||||
| 11 | W10140571 | Seal, Switch Shaft |
|
$ 6.93 | |||||
| W10909678 | Kit, Lp Conversion (Replaces: W10681410) |
|
Immediately | $ 109.35 | |||||
| ARI59533660F9AB0B0BC7E501CA04F08592 | (right Front, Center) |
|
- | ||||||
| W11643126 | Electrode, Burner (Replaces: W10669524) |
|
Immediately | $ 47.89 | |||||
| W11661897 | Electrode, Burner (Replaces: W10669523) |
|
$ 43.52 | ||||||
| W11233561 | Valve, Gas (Replaces: W10566057) |
|
Immediately | $ 238.25 | |||||
| W11241561 | Valve, Gas (Replaces: W10566062) |
|
Immediately | $ 175.63 | |||||
| WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 6.57 | ||||||
| W11186518 | Orifice Assembly (8k) |
|
$ 89.42 | ||||||
| W10873134 | Valve, Gas (Replaces: W10831590) |
|
$ 245.39 | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARI02A2D02EE64F6B7820BBC4A10A38B319 | (right Rear, Center) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11436985 | Lp Conversion Kit (burners) (Replaces: W11397194) |
|
Immediately | $ 41.90 | |||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11186526 | Orifice Assembly (15k) |
|
Immediately | $ 89.71 | |||||
| W11186509 | Orifice Assembly (5k) |
|
Immediately | $ 89.69 | |||||
| W11186522 | Orifice Assembly (9.2k) |
|
Immediately | $ 89.37 | |||||
| W11666003 | Electrode, Burner (Replaces: W10669525) |
|
$ 43.57 |
