Blower Parts


Chassis Parts


Cooktop Parts


Door Parts


Drawer Parts


Manifold Parts


Optional Parts (not Included)

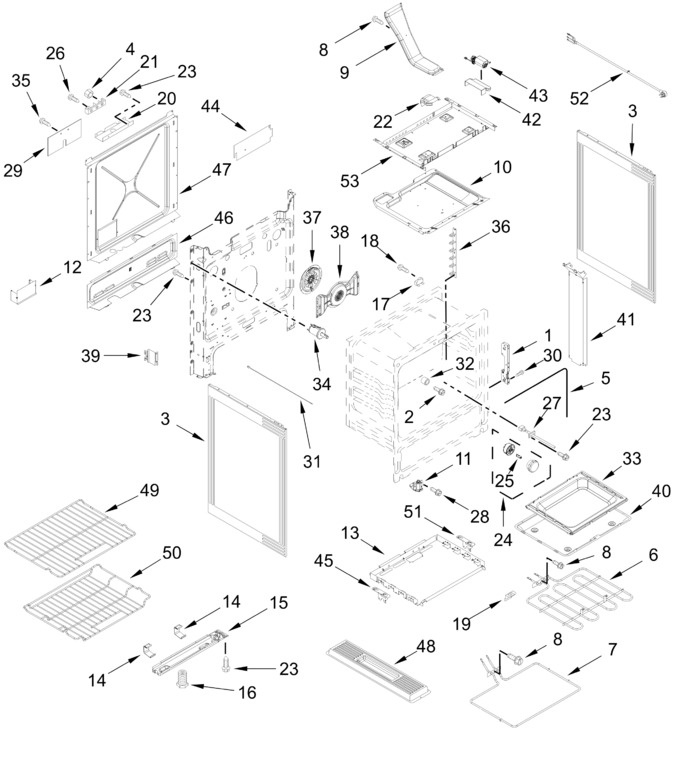

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 8.39
2	W11169708		Screw   (Replaces: 3196560)				$ 13.36
3	W11730303		Panel, Side (black)   (Replaces: W11445467)			Immediately	$ 160.65
4	7103P02760		Nut		Appelez-nous	-
5	W11562931		Gasket, Door   (Replaces: W11491752)			Immediately	$ 78.98
6	W11238400		Element, Broil   (Replaces: W10544952)			Immediately	$ 106.36
7	W10779716		Element, Bake   (Replaces: W10774342)			Immediately	$ 68.47
8	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 13.25
9	W11122085		Flue, Assembly				$ 106.54
10	W10289168		Box, Burner Si				$ 184.41
11	WPW10341186		Front Foot Assembly   (Replaces: W10341186)			Immediately	$ 29.33
12	W10162258		Cover, Regulator				$ 92.45
13	W10541959		Shield, Bake			Immediately	$ 188.29
14	W10137382		Clip, Panel			Immediately	$ 43.58
15	W11818353		Base Rail Assembly (left)   (Replaces: W10390008)				$ 56.39
16	WPW10058460		Foot, Leveling (rear)   (Replaces: W10058460)			Immediately	$ 7.42
17	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 45.09
18	3196172		Screw			Immediately	$ 12.12
19	W10035900		Support, Oven Bottom				$ 12.92
20	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
21	W11736123		Block, Terminal (without Ground Strap)   (Replaces: W11750818)				$ 14.52
22	W10162257		Duct, Cooktop				$ 25.88
23	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
24	W11707255		Light Assembly   (Replaces: W11634772)			Immediately	$ 36.68
25	WPW10571723		Bulb, Halogen (40 Watts)   (Replaces: W10571723)			Immediately	$ 24.94
26	WP3400016		Screw   (Replaces: 3400016)				$ 7.55
27	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 143.70
28	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
29	W10655441		Shield, Power Cord				$ 129.92
30	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
31	W11370463		Rod, Door Switch   (Replaces: W10273192)			Immediately	$ 60.18
32	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 50.45
33	W11844172		Bottom, Oven   (Replaces: W11842285)		Appelez-nous	-
34	W11620712		Switch, Door   (Replaces: W11511828)			Immediately	$ 41.68
35	W11684512		Screw   (Replaces: 3400080)				$ 13.33
36	W10603482		Rack, Ladder				$ 402.53
37	W11730307		Fan, Convection (includes Element)   (Replaces: W11635909)				$ 219.16
38	W11844173		Baffle, Full Convection   (Replaces: W11842271)		Appelez-nous	-
39	W10273002		Bracket, Oven Support				$ 68.71
40	W11379357		Bake Pan			Immediately	$ 74.57
41	W10162255		Duct, Cover				$ 26.25
42	W10162254		Duct, Cooling				$ 121.01
43	W11620737		Cooling Fan   (Replaces: W11467246)			Immediately	$ 208.82
44	W10818358		Shield, Wire (includes Latch)		Appelez-nous	-
45	W10828883		Bracket, Panel (left)				$ 70.52
46	W10575377		Cover, Wire				$ 98.32
47	W11379354		Cover, Back			Immediately	$ 70.01
48	W11403917		Kit, Reservoir (steam Rack)   (Replaces: W10686408)				$ 162.20
49	W11673270		Rack, Steam   (Replaces: W10554007)			Immediately	$ 79.69
50	W11699908		Rack, Heavy Duty   (Replaces: W10554005)				$ 123.29
51	W10828882		Bracket, Panel (right)				$ 70.52
52	W11226497		Cord, Power   (Replaces: W10624592)			Immediately	$ 99.50
53	W10558277		Burner Box, Gas Downdraft		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11818353		Base Rail Assembly (right)   (Replaces: W10390007)				$ 56.39
	W11794987		Insulation, Back   (Replaces: W11769075)		Appelez-nous	-
	7111P01760		Clamp, Wire		Appelez-nous	-
	4820F01559		Insulation, Strap		Appelez-nous	-
	W11688567		Insulation, Wrap   (Replaces: W10289173)				$ 115.21
	W11688730		Insulation, Bottom   (Replaces: W10575374)			Immediately	$ 71.98
