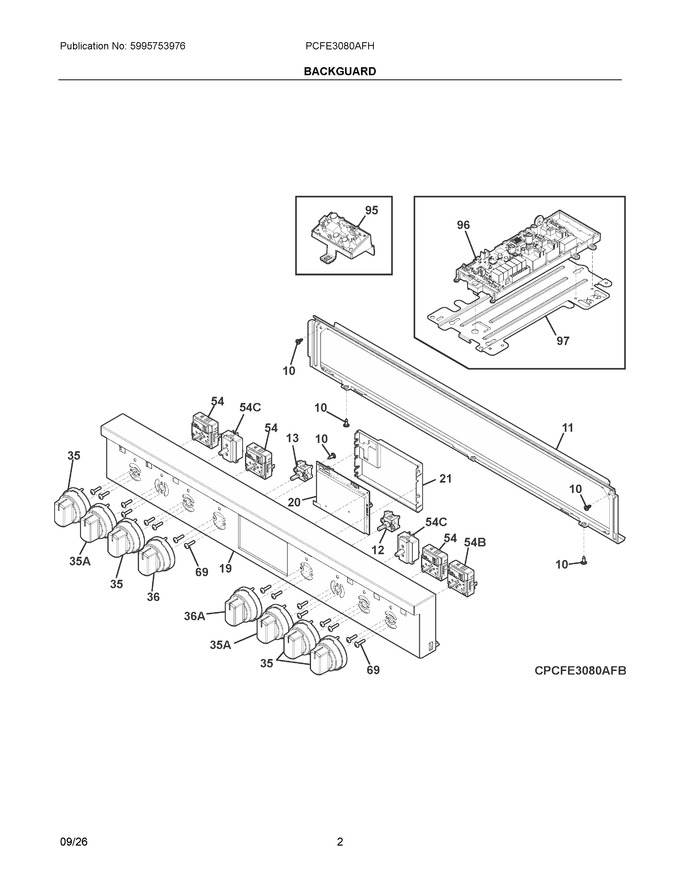

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
11	5304528295		Bracket, Support, Front Control			Immediately	$ 25.33
12	5304539060		Potenmeter, Temp Selct, Oven-pur, 12#			Immediately	$ 68.01
13	5304539138		Potentiomter, Mode Slct, Ovn-pur, 13#			Immediately	$ 73.63
14	5304528554		Seal, Smoothtop			Immediately	$ 31.86
19	5304538608		Control Asmy, Oven,, Ui630e-cf, 20#			Immediately	$ 193.38
20	5304538920		Control Panel, Asmy, Ss-cpg, 19			Immediately	$ 155.14
35	5304528720		Knob, Infinite Switch, Stainless, 0 Deg. Flat				$ 59.04
36	5304528448		Knob, Oven Selector, Stainless				$ 55.87
54	5304522966		Switch, Infinite, Single			Immediately	$ 78.11
69	5304528301		Screw, Truss, 8-32 X 17.65				$ 3.74
95	5304534730		Pc Board, Assembly, Backlit Power, W/housing			Immediately	$ 86.95
96	140171068053		Pc Board, Ovc Relay			Immediately	$ 126.93
97	5304528373		Bracket, Ovc Board			Immediately	$ 22.13
35A	5304528722		Knob, Infinite Switch, Stainless, 90 Deg. Flat				$ 55.87
36A	5304528449		Knob, Oven Temp, Stainless			Immediately	$ 55.87
54B	140173680012		Switch, Infinite, Tboil			Immediately	$ 34.36
54C	5304537897		Switch Infinite, Warmer Zone			Immediately	$ 36.11
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304536356		Harness, Wiring, Backlit Knobs				$ 115.45
NI	5304536348		Harness, Wiring, Energy, Regulator				$ 125.82
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
NI	5304529016		Harness, Wiring, Macs Panel, To Ui Board				$ 23.16
NI	5304528462		Harness, Wiring, Potentiometers				$ 169.61
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
