Basket And Tub Parts
Console And Water Inlet Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)

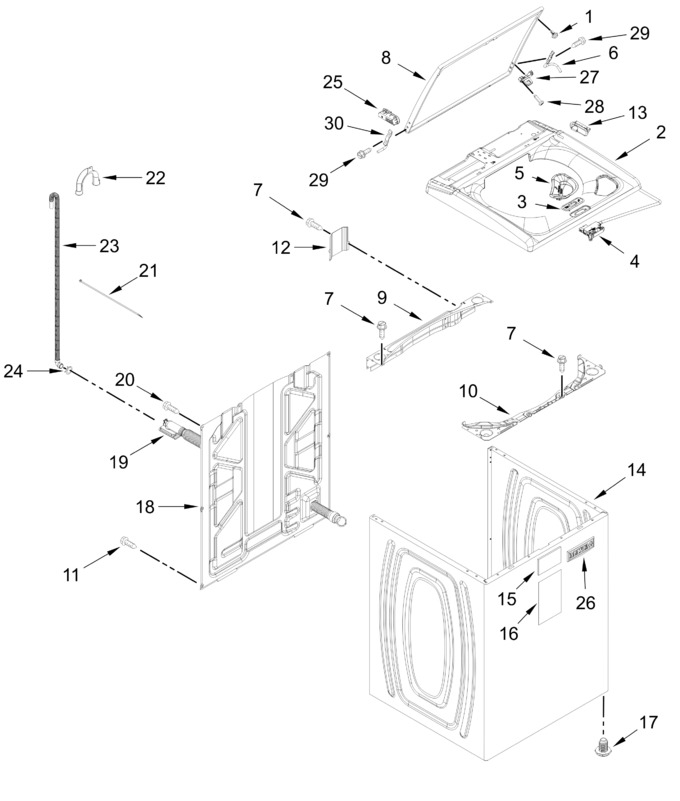

Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8572266 | Bumper, Door |
|
Immediately | $ 10.56 | ||||
| 2 | W11782255 | Top (white) (Replaces: W11674351) |
|
$ 247.06 | |||||
| 3 | W11643703 | Bezel, Lid Lock (Replaces: W11403468) |
|
Immediately | $ 27.24 | ||||
| 4 | W11513248 | Latch, Lid Lock Assembly (Replaces: W11414731) |
|
Immediately | $ 83.50 | ||||
| 5 | W11781649 | Bleach Dispenser (white) (Replaces: W11676628) |
|
$ 13.20 | |||||
| 6 | W11513247 | Hinge, Lid (right) (Replaces: W11429864) |
|
$ 9.44 | |||||
| 7 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 8 | W11799971 | Lid Assembly (white) (Replaces: W11679679) |
|
$ 266.45 | |||||
| 9 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 93.49 | |||||
| 10 | W11381327 | Channel, Top Front |
|
Immediately | $ 70.65 | ||||
| 11 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 12 | W10676061 | Cover, Harness |
|
$ 33.09 | |||||
| 13 | W11654272 | Hinge, Spacer Right (Replaces: W11434930) |
|
$ 16.30 | |||||
| 14 | W10596395 | Cabinet (white) (Replaces: W10478060) |
|
$ 433.61 | |||||
| 15 | WP8564458 | Absorber, Impact (small) (Replaces: 8564458) |
|
Immediately | $ 7.54 | ||||
| 16 | W11611669 | Absorber, Impact (Replaces: W10834527) |
|
$ 20.95 | |||||
| 17 | WPW10687506 | Leveling Foot Assembly (Replaces: W10687506) |
|
Immediately | $ 23.46 | ||||
| 18 | W11486091 | Panel, Rear (Replaces: W11417173) |
|
Immediately | $ 294.95 | ||||
| 19 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 32.20 | ||||
| 20 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 21 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 22 | WPW10280024 | U-bend, Drain Hose (Replaces: W11705656) |
|
$ 75.16 | |||||
| 23 | W11764699 | Outer Drain Hose (Replaces: W11703202) |
|
$ 36.89 | |||||
| 24 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 25 | W11782264 | Hinge, Spacer (left) (Replaces: W11718795) |
|
$ 5.83 | |||||
| 26 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 27 | W11513250 | Lid Strike, (white) (Replaces: W11391550) |
|
Immediately | $ 11.65 | ||||
| 28 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 6.80 | ||||
| 29 | WPW10119828 | Screw (Replaces: W10119872) |
|
Immediately | $ 6.80 | ||||
| 30 | W11782132 | Hinge, Wire (left) (Replaces: W11732042) |
|
- |
