Diagram for Door And Panel Parts
Door And Panel Parts

Diagram for Lower Rack Parts
Lower Rack Parts

No Diagram Image Available
Optional Parts (not Included)

Diagram for Pump, Washarm And Motor Parts
Pump, Washarm And Motor Parts

Diagram for Third Level Rack And Track Parts
Third Level Rack And Track Parts

Diagram for Tub And Frame Parts
Tub And Frame Parts

Diagram for Upper Rack And Track Parts
Upper Rack And Track Parts

Diagram for Upper Wash And Rinse Parts
Upper Wash And Rinse Parts


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11779935 Cover, Console   (Replaces: W11705283) Special Order $ 50.28

2 W11766666 Arm, Hinge (left)   (Replaces: W11721083) In-Stock Immediately $ 53.24

3 W11377160 Cross Brace, Door Special Order $ 30.02

4 W11825178 Handle, Pocket (black) Appelez-nous -
5 W11545318 Access Panel (black)   (Replaces: W11108979) In-Stock Immediately $ 27.23

6 W11791532 Front Panel (stainless, Includes Barrel Nut And Handle)   (Replaces: W11750354) Special Order $ 498.28

7 W11676450 Screw   (Replaces: 3400000) Special Order $ 13.28

8 WPW10309090 Screw   (Replaces: W11364953) In-Stock Immediately $ 69.17

9 W11573704 Insulation, Single Layer   (Replaces: W11038694) In-Stock Immediately $ 28.85

10 W11579528 Toe Panel (black)   (Replaces: W11467733) In-Stock Immediately $ 31.58

11 W10692757 Barrel Nut, Front Panel Special Order $ 14.41

12 W11551775 Screw (black)   (Replaces: W11438978) In-Stock Immediately $ 16.10

13 W11778318 Insulation, Front Panel   (Replaces: W10919859) Special Order $ 21.47

W11766665 Arm, Hinge (right)   (Replaces: W11721082) In-Stock Immediately $ 53.24


    View Diagram in Separate Window     Print Icon   Print Part List

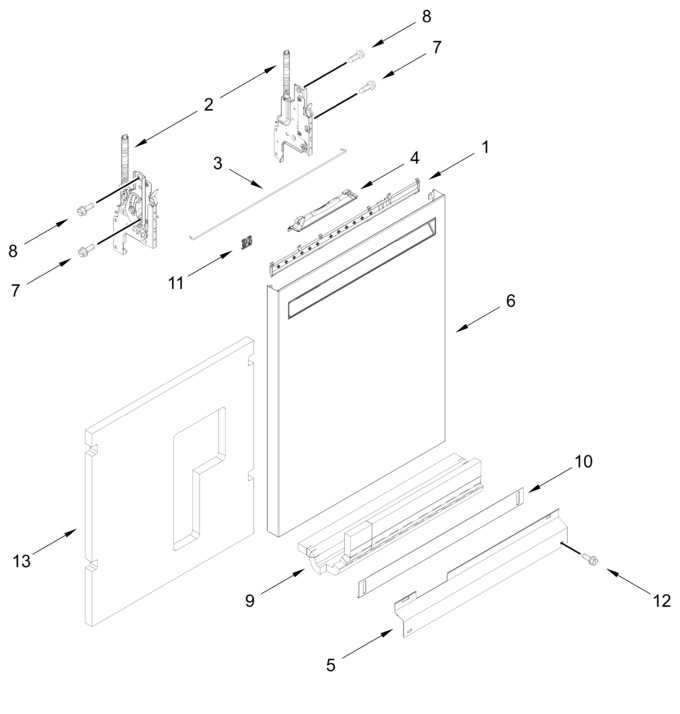

Diagram for KDFS324SPS1
