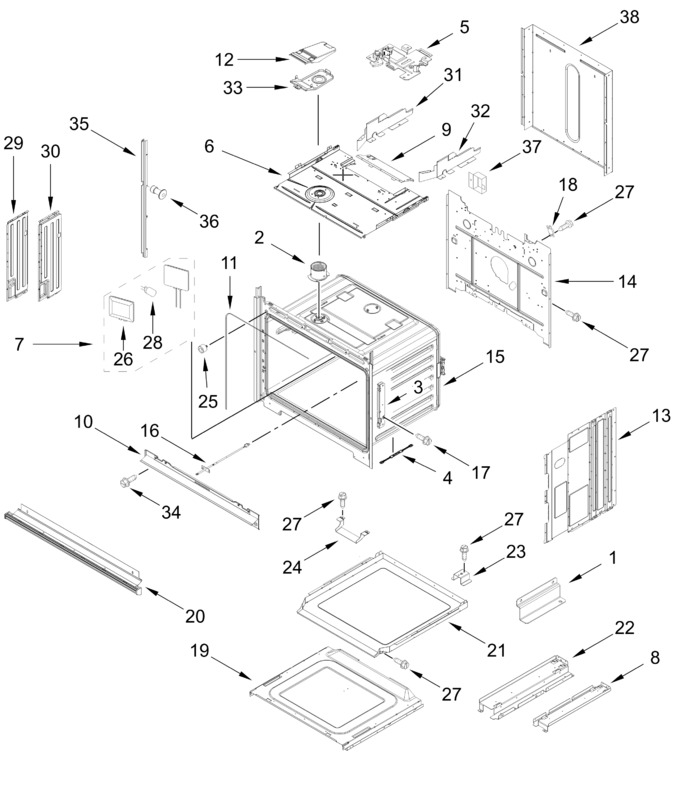

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11818393 | Bracket, Side (Replaces: W11751065) |
|
- | |||||
| 2 | W11240525 | Tube, Vent (Replaces: W11085298) |
|
$ 22.99 | |||||
| 3 | W11712405 | Receiver, Hinge (left) (Replaces: W11239070) |
|
Immediately | $ 80.46 | ||||
| 4 | W11598152 | Spacer, Base (Replaces: W11558603) |
|
Immediately | $ 16.33 | ||||
| 5 | W11837005 | Latch, Door (Replaces: W11814645) |
|
- | |||||
| 6 | W11818414 | Top, Chassis (Replaces: W11729557) |
|
- | |||||
| 7 | W11292252 | Light Assembly (Replaces: W11205574) |
|
Immediately | $ 96.73 | ||||
| 8 | W10283021 | Support, Base (right) |
|
- | |||||
| 9 | W11818416 | Deflector, Fan (Replaces: W11729909) |
|
- | |||||
| 10 | W11743956 | Vent, Combo Center (Replaces: W11701588) |
|
$ 154.16 | |||||
| 11 | W11692454 | Gasket (Replaces: W11608108) |
|
$ 132.23 | |||||
| 12 | W11256424 | Cover, Vent Exhaust |
|
- | |||||
| 13 | W11165274 | Side, Chassis |
|
$ 72.89 | |||||
| 14 | W11223327 | Back, Chassis |
|
- | |||||
| 15 | ARIF1DCB018B2324CAD9D04009CD738647B | Liner, Oven (not Serviceable) |
|
- | |||||
| 16 | W11598120 | Probe, Sensor (Replaces: W11346074) |
|
Immediately | $ 37.58 | ||||
| 17 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 8.30 | |||||
| 18 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 121.07 | ||||
| 19 | W11598115 | Base, Chassis (Replaces: W11135103) |
|
$ 68.27 | |||||
| 20 | W11648980 | Bottom Vent Assembly (stainless) (Replaces: W11467754) |
|
Immediately | $ 213.69 | ||||
| 21 | W11244446 | Duct, Bottom Chassis |
|
$ 63.23 | |||||
| 22 | W11818384 | Support, Base (left) (Replaces: W11738531) |
|
- | |||||
| 23 | W11135135 | Support, Air Channel |
|
$ 32.54 | |||||
| 24 | W11731183 | Spacer, Bottom Chassis Duct (Replaces: W11135125) |
|
$ 34.97 | |||||
| 25 | W11598125 | Bumper And Screw (Replaces: W11166315) |
|
$ 21.03 | |||||
| 26 | WPW10519866 | Lens, Light (Replaces: W10472386) |
|
$ 86.70 | |||||
| 27 | 7101P42660 | Screw |
|
- | |||||
| 28 | WPW10472384 | Bulb, Light (Replaces: W10472384) |
|
Immediately | $ 103.05 | ||||
| 29 | W11598150 | Cover, Suction (left) (Replaces: W11167419) |
|
$ 66.65 | |||||
| 30 | W11598151 | Cover, Suction (right) (Replaces: W11186675) |
|
$ 66.65 | |||||
| 31 | W11186391 | Deflector, Chassis (left) |
|
- | |||||
| 32 | W11186398 | Deflector, Chassis (right) |
|
- | |||||
| 33 | W11256423 | Base, Vent Exhaust |
|
- | |||||
| 34 | WPY706189 | Screw (Replaces: W11249635) |
|
Immediately | $ 6.80 | ||||
| 35 | W11235457 | Trim, Left Side (black) |
|
$ 71.75 | |||||
| 36 | W11754870 | Rivet (black) (Replaces: W11696855) |
|
- | |||||
| 37 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 38 | W11134657 | Duct, Lower Chassis Back |
|
- | |||||
| W11602626 | Bag, Hardware (Replaces: W11394923) |
|
$ 21.12 | ||||||
| W11837007 | Harness, Door Latch (Replaces: W11814358) |
|
- | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | ||||||
| W11688564 | Insulation, Wrap (Replaces: W11188284) |
|
- | ||||||
| W11837006 | Harness, Main (Replaces: W11671612) |
|
- | ||||||
| W11249930 | Harness, Communication |
|
- | ||||||
| W11818396 | Insulation, Cavity (Replaces: W11704930) |
|
- | ||||||
| W11356991 | Harness, Ground Console Combo |
|
- | ||||||
| W11712406 | Receiver, Hinge (right) (Replaces: W11239072) |
|
$ 80.36 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| 4448664 | Clamp, Conduit |
|
$ 19.27 | ||||||
| W11235458 | Trim, Right Side (black) |
|
$ 71.75 |
