SELECT A DIAGRAM

Control Panel And Outer Door Parts


Dishrack Parts


Fill Drain And Base Parts


Inner Door Parts


Optional Parts (not Included)


Pump And Motor Parts


Tub And Frame Parts


Wash System Parts

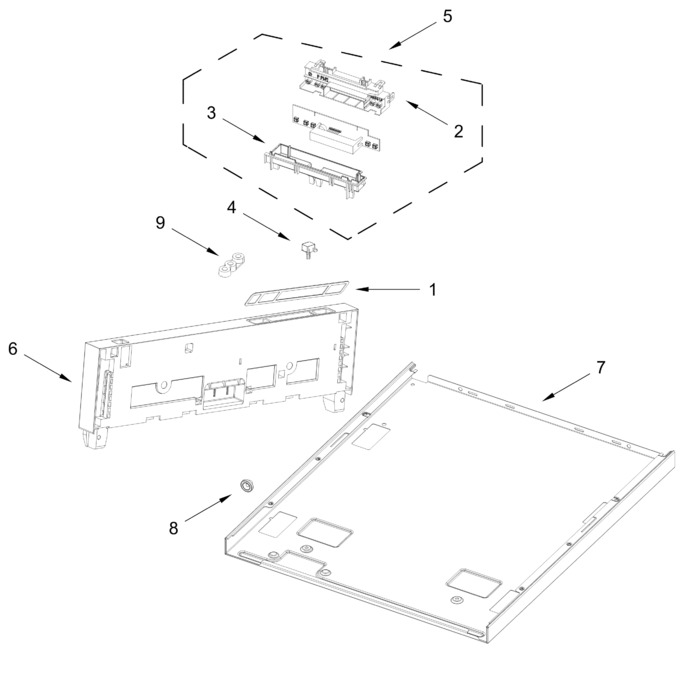

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826833		Gasket, Flat   (Replaces: W11825783)		Appelez-nous	-
2	W11826847		Brace, Connector (upper)   (Replaces: W11825795)		Appelez-nous	-
3	W11826846		Brace, Connector (lower)   (Replaces: W11825794)		Appelez-nous	-
4	W11826834		Button, On-off (black)   (Replaces: W11825784)		Appelez-nous	-
5	W11826844		Display, Control Board   (Replaces: W11825793)		Appelez-nous	-
6	W11834799		Control Panel   (Replaces: W11834592)		Appelez-nous	-
7	W11826808		Front Panel   (Replaces: W11825763)		Appelez-nous	-
8	W11834800		Roll, Sliding Door   (Replaces: W11834593)		Appelez-nous	-
9	W11834831		Gasket, Button   (Replaces: W11834600)		Appelez-nous	-
	W11834804		Button, C-d (black)   (Replaces: W11834597)		Appelez-nous	-
	W11834830		Button, Delay (black)   (Replaces: W11834599)		Appelez-nous	-
	W11834803		Button, A-b (black)   (Replaces: W11834596)		Appelez-nous	-
	W11834802		Button, Cycle (black)   (Replaces: W11834595)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
