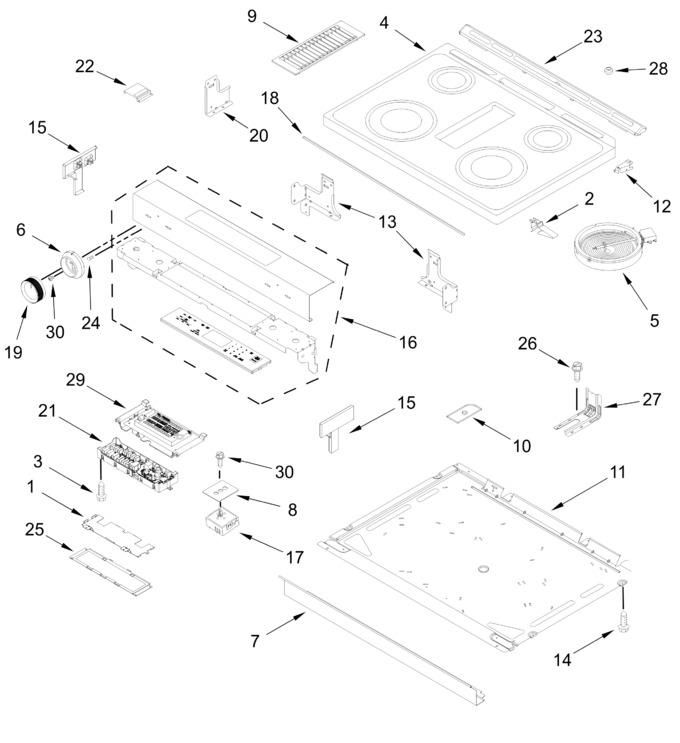

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10558372		Bracket, Control				$ 22.59
2	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 13.36
3	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
4	W11830684		Cooktop (stainless)		Appelez-nous	-
5	W11517959		Element, (dual 3000w)   (Replaces: W11282542)			Immediately	$ 132.01
6	W11844187		Bezel (stainless)   (Replaces: W11823570)		Appelez-nous	-
7	W10743276		Panel, Lower Console (stainless)				$ 78.01
8	W11783270		Gasket, Infinite Switch		Appelez-nous	-
9	W11211500		Grill, Air   (Replaces: W10575593)			Immediately	$ 223.54
10	W10882900		Gasket				$ 21.01
11	W10561812		Pan, Radiant		Appelez-nous	-
12	W10162253		Brace, Corner (left)				$ 66.72
13	W10289170		Support, Cooktop (left)				$ 27.05
14	W11244557		Screw   (Replaces: 3196173)				$ 12.86
15	W10555937		Endcap (stainless, Left)				$ 61.16
16	W11844201		Console (stainless)   (Replaces: W11826775)		Appelez-nous	-
17	W10911303		Switch, Infinite   (Replaces: W10578768)			Immediately	$ 108.94
18	W10802441		Gasket, Console And Cooktop   (Replaces: W10612719)			Immediately	$ 21.36
19	W11825164		Knob, Duel		Appelez-nous	-
20	W10598048		Bracket, Console (center)				$ 23.16
21	W11844177		Control Mrc2   (Replaces: W11822047)		Appelez-nous	-
22	W11355689		Keypad Shield				$ 20.38
23	W11170796		Trim, Vent (stainless)   (Replaces: W10636529)			Immediately	$ 131.18
24	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.91
25	W10555923		Bracket, User Interface				$ 96.69
26	7101P48560		Screw, Anti-tip		Appelez-nous	-
27	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 21.77
28	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 13.42
29	W11105615		Display, Assembly   (Replaces: W10759325)			Immediately	$ 474.88
30	W11846982		Screw   (Replaces: W10498399)				$ 10.58
	ARI8EC62EE1750CC7AD55DE51A907D2F66D		(left Rear, Right Front)		Appelez-nous	-
	W11844190		Knob (hyper)   (Replaces: W11825166)		Appelez-nous	-
	WPW10342780		Element (1300w)   (Replaces: W10342780)			Immediately	$ 159.19
	W11226772		Display Harness   (Replaces: W11172426)			Immediately	$ 213.24
	W10289169		Support, Cooktop (right)				$ 27.05
	W11171119		Element (1200w)   (Replaces: 8273994)			Immediately	$ 213.20
	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11844188		Knob (single)   (Replaces: W11823568)		Appelez-nous	-
	W11198274		Harness, Down Draft Fan Jumper				$ 105.96
	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 67.76
	W10555940		Endcap (stainless, Right)				$ 61.16
	W10162252		Brace, Corner (right)				$ 70.73
	W11844200		Harness, Main   (Replaces: W11822328)		Appelez-nous	-
	W11848054		Switch, Infinite   (Replaces: W11769052)		Appelez-nous	-
	W11848053		Switch, Infinite   (Replaces: W11769055)		Appelez-nous	-
	W11172418		Harness, Console			Immediately	$ 212.10
	W11171878		Harness, Cooktop			Immediately	$ 187.16
	WPW10251108		Element (3200w)   (Replaces: W10251108)			Immediately	$ 307.76
	W10664316		Clip, Harness (cooktop)				$ 18.87
