SELECT A DIAGRAM

01 - Cover Sheet

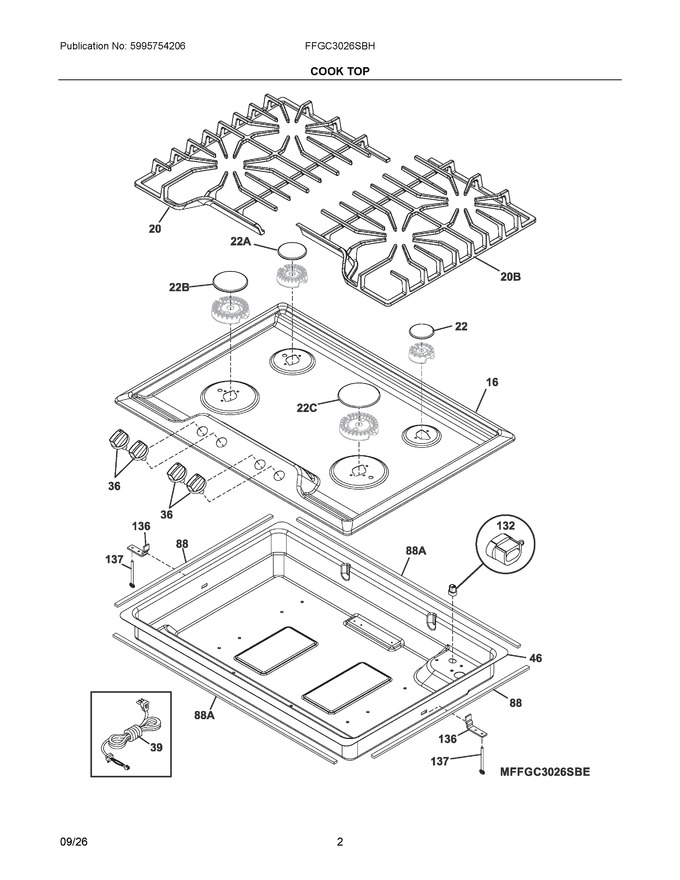

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5304528573		Main Top Asm, Black		Appelez-nous	-
20	5304522678		Grate, Burner, Black, Lh				$ 235.55
22	5304508441		Cap, 5k Burner, Matte, Black			Immediately	$ 35.04
36	5304504838		Knob, Burner, Black		Appelez-nous	-
39	5304535446		Power Cord, Electrical, Supply		Appelez-nous	-
46	5304498809		Burner Box		Appelez-nous	-
88	5304521662		Gasket, Maintop, Foam Tape, Side				$ 17.19
132	5304513507		Bushing, Strain Relief				$ 9.10
136	318264301		Support, Box, (2)				$ 42.95
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 12.20
20B	5304522679		Grate, Burner, Black, Rh		Appelez-nous	-
22A	5304508442		Cap, 9.5k Burner, Matte, Black			Immediately	$ 36.55
22B	5304508443		Cap, 14k Burner, Matte, Black			Immediately	$ 46.01
22C	5304508468		Cap, 17k Burner, Matte, Black				$ 49.45
88A	5304521664		Gasket, Maintop, Foam Tape, Front/rear		Appelez-nous	-
NI	305309701		Screw, Phil, 4.2 X 6.5, (20)				$ 5.67
NI	305338602		Screw		Appelez-nous	-
NI	5304506478		Seal, Rubber				$ 11.34
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIA	305424100		Tape, Aluminum		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
