01 - Cover Sheet
02 - Cook Top

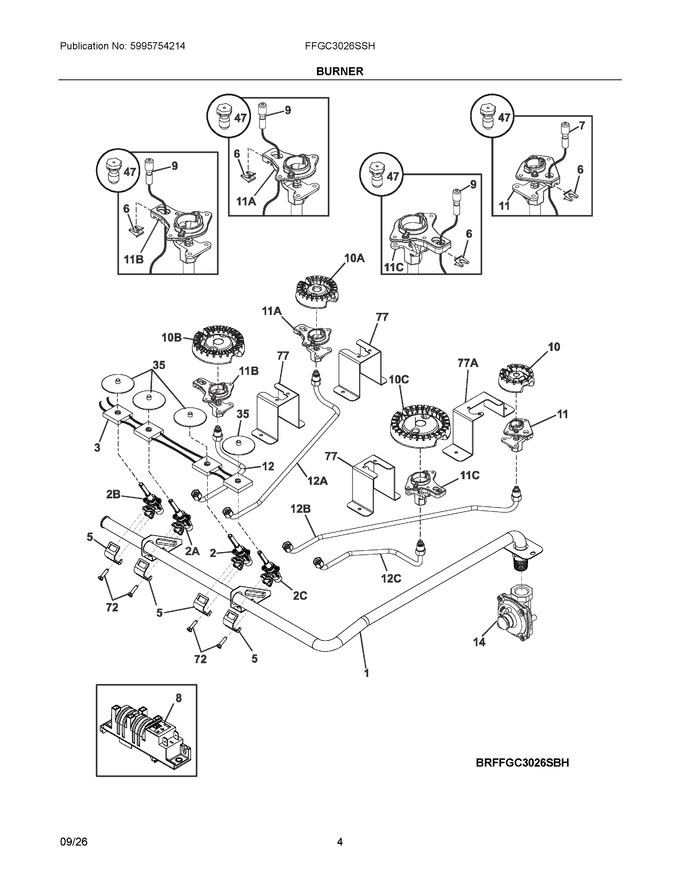

03 - Burner
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304527973 | Manifold Pipe |
|
- | |||||
| 2 | 5304505693 | Valve, Saddle, 680 Btu, Orange Stem |
|
$ 80.85 | |||||
| 3 | 5304527982 | Switch Assembly, Ignitor, W/harn |
|
$ 31.39 | |||||
| 5 | 357733403 | Bracket, Valve Fixing |
|
- | |||||
| 6 | 5304538490 | Spring Clip, Ignitor (Replaces: 5304516455) |
|
$ 4.08 | |||||
| 7 | 5304516453 | Ignitor, Top Burner, 380mm, W/wiring |
|
$ 20.03 | |||||
| 8 | 5304505695 | Module, Spark, 4 Outputs |
|
Immediately | $ 68.16 | ||||
| 9 | 5304516454 | Ignitor, Top Burner, 520mm, W/wiring |
|
$ 22.45 | |||||
| 10 | 316438200 | Burner, Sealed, 5k |
|
$ 56.70 | |||||
| 11 | 5304516449 | Holder, Orifice/ignitor, 5k, W/nat Orifice |
|
$ 43.99 | |||||
| 12 | 5304532994 | Tube, Burner, Lh Front |
|
- | |||||
| 14 | 5304519943 | Regulator, Pressure |
|
$ 134.83 | |||||
| 35 | 5304508440 | Bushing, Insulating |
|
Immediately | $ 11.38 | ||||
| 47 | 140054336049 | Lp Conversion Kit |
|
- | |||||
| 72 | 5304508436 | Screw, Saddle Valve, M4 |
|
- | |||||
| 77 | 5304498799 | Bracket, Ignitor/orifice, Mounting |
|
$ 18.43 | |||||
| 10A | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 52.45 | ||||
| 10B | 316438600 | Burner, Sealed, 14k |
|
$ 79.80 | |||||
| 10C | 316438400 | Burner, Sealed, 17k |
|
Immediately | $ 83.42 | ||||
| 11A | 5304516450 | Holder, Orifice/ignitor, 9.5k, W/nat Orifice |
|
Immediately | $ 43.99 | ||||
| 11B | 5304516451 | Holder, Orifice/ignitor, 12k, W/nat Orifice |
|
$ 48.65 | |||||
| 11C | 5304516452 | Holder, Orifice/ignitor, 14k, W/nat Orifice |
|
$ 54.15 | |||||
| 12A | 5304521182 | Tube, Burner, Lh Rear |
|
- | |||||
| 12B | 5304521183 | Tube, Burner, Rh Rear |
|
- | |||||
| 12C | 5304531763 | Tube, Burner, Rh Front |
|
- | |||||
| 2A | 5304505690 | Valve, Saddle, 850 Btu, Green Stem |
|
Immediately | $ 69.77 | ||||
| 2B | 5304505691 | Valve, Saddle, 1125 Btu, Blue Stem |
|
Immediately | $ 69.01 | ||||
| 2C | 5304505692 | Valve, Saddle, 1800 Btu, Red Stem |
|
$ 71.29 | |||||
| 77A | 5304523447 | Bracket, Ignitor/orifice, 5k Bur |
|
$ 12.05 | |||||
| NI | A21779501 | Gasket, Valve Stem |
|
- | |||||
| NI | 305338602 | Screw |
|
- | |||||
| NI | 5303323140 | Screw, Ground (Replaces: 305452800) |
|
- | |||||
| NI | 305309701 | Screw, Phil, 4.2 X 6.5, (20) |
|
$ 5.67 | |||||
| NIA | 5304519944 | Cap, Regulator, Red |
|
- |
