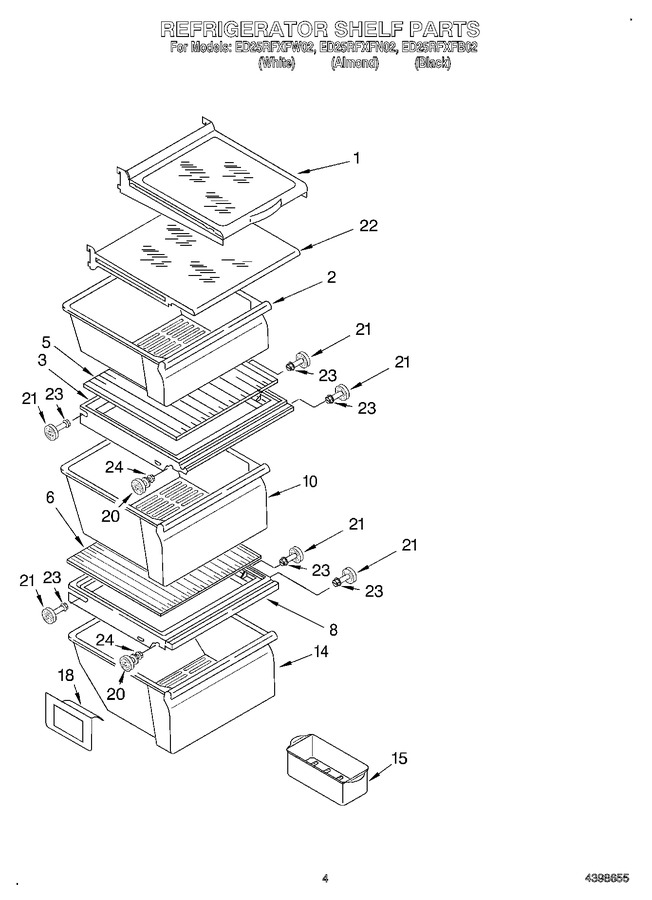

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194281		Shelf Assembly, Cantilever (2)		Appelez-nous	-
2	W11497323		Snack Bin   (Replaces: 2196482)				$ 234.84
3	W10508993		Cover, Crisper   (Replaces: 2194578)				$ 305.85
5	W10864399		Glass, Cover   (Replaces: 2174150)				$ 232.03
6	W10864399		Glass, Cover   (Replaces: 2179259)				$ 232.03
8	W10508993		Cover, Meat Pan   (Replaces: 2189601)				$ 305.85
10	WP2188661		Pan, Crisper   (Replaces: 2196481)			Immediately	$ 196.47
14	WP2188664		Meat Pan   (Replaces: 2196480)			Immediately	$ 92.70
15	W10136387A		Egg Bin   (Replaces: 2182730)				$ 19.54
18	2179350		Deflector				$ 85.89
20	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.77
21	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.87
22	2209601		Shelf, Snack Bin		Appelez-nous	-
23	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
24	WP3-24004-109		Screw   (Replaces: 3400894)				$ 9.14

    View Diagram in Separate Window       Print Part List
