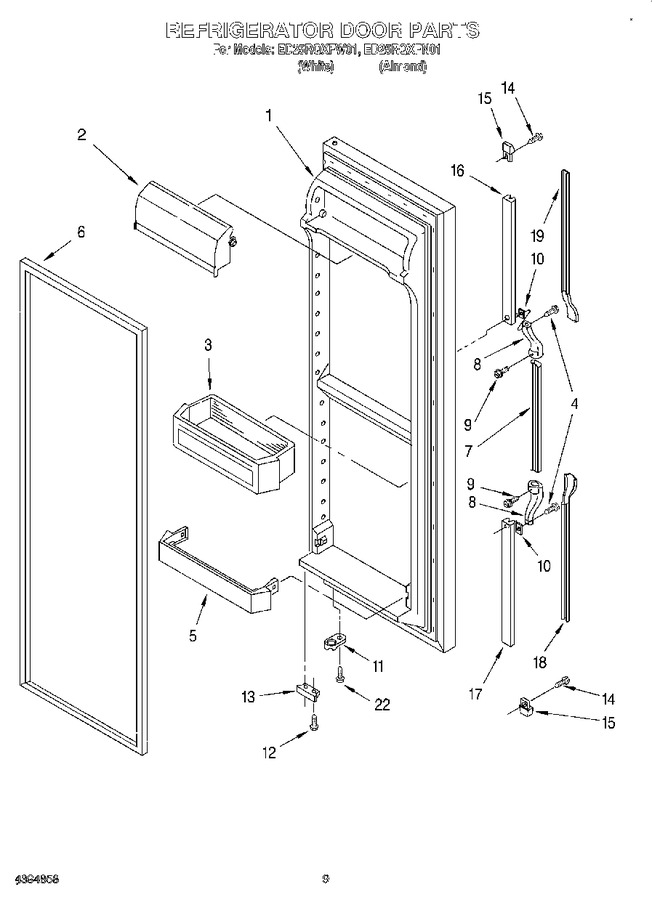

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194509N		Refrigerator Door (almond (includes Item No.6))		Appelez-nous	-
1	2194509W		Refrigerator Door (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
3	2194917		Shelf Bin (3)		Appelez-nous	-
4	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
5	WP2177962K		Trivet   (Replaces: 2177962)				$ 85.14
6	2159075		Door, Gasket Magnetic (service)			Immediately	$ 333.00
7	2194767N		Handle, Center (almond)		Appelez-nous	-
7	2194767W		Handle, Center (white)		Appelez-nous	-
8	1119359		End Cap, Center Handle		Appelez-nous	-
9	489022		Screw		Appelez-nous	-
10	935075		Shim		Appelez-nous	-
11	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	2195950		Bracket, Door Stop				$ 5.84
14	489075		Screw		Appelez-nous	-
15	2156220		End Cap		Appelez-nous	-
16	2194772		Retainer, Top		Appelez-nous	-
17	2194770		Retainer, Bottom		Appelez-nous	-
18	2194773N		Insert, Bottom (almond)		Appelez-nous	-
18	2194773W		Insert, Bottom (white)		Appelez-nous	-
19	2194775W		Insert, Top (white)		Appelez-nous	-
19	2194775N		Insert, Top (almond)		Appelez-nous	-
22	WP3400012		Screw   (Replaces: 3400012)				$ 8.26

    View Diagram in Separate Window       Print Part List
