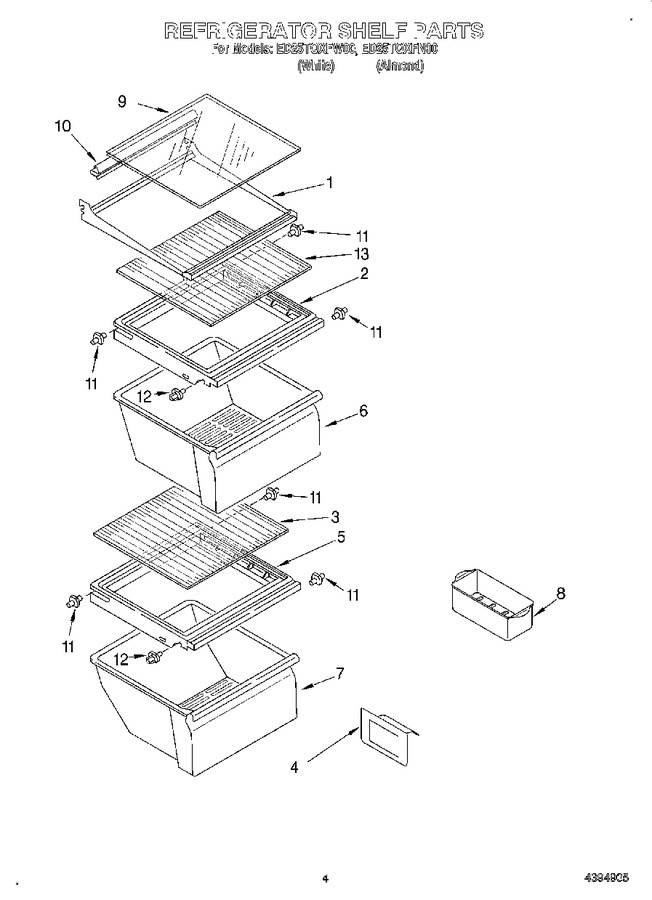

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163572		Shelf, Cantilever (3)		Appelez-nous	-
2	W10508993		Cover, Crisper   (Replaces: 2194578)				$ 305.85
3	W10864399		Glass, Cover   (Replaces: 2179259)				$ 232.03
4	2179350		Deflector				$ 85.89
5	W10508993		Cover, Meat Pan   (Replaces: 2189601)				$ 305.85
6	WP2188656		Pan, Crisper   (Replaces: 2174109)				$ 143.22
7	2174118		Meat Pan		Appelez-nous	-
8	W10136387A		Egg Bin   (Replaces: 2164333)				$ 19.54
9	2177986		Glass, Shelf				$ 90.50
10	1125594		Retainer		Appelez-nous	-
11	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 32.85
12	4388539		Shelf Stud   (Replaces: 2172943)				$ 22.28
13	W10864399		Glass, Cover   (Replaces: 2174150)				$ 232.03
