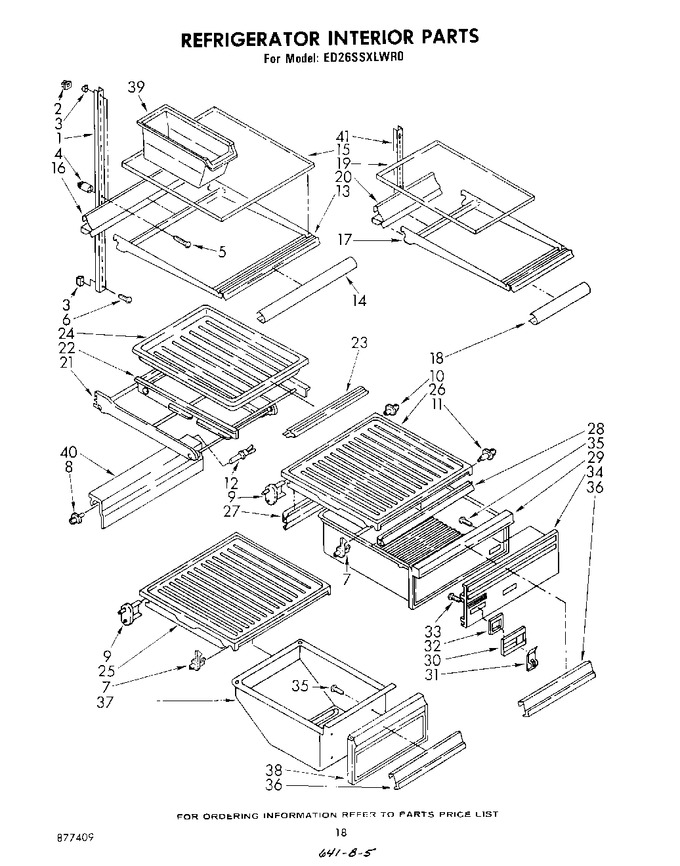

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	936653		Shelf Ladder		Appelez-nous	-
2	983604		Screw Anchor		Appelez-nous	-
3	520965		Screw, Support Ladder				$ 31.35
4	512923		Screw, Grommet		Appelez-nous	-
5	488357		Screw, 8 X 1-1/4		Appelez-nous	-
6	488980		Screw (repair)		Appelez-nous	-
6	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
7	984779		Shelf, Stud		Appelez-nous	-
8	937513		Stud, Shelf		Appelez-nous	-
9	937521		Stud, Shelf		Appelez-nous	-
10	936591		Stud				$ 6.18
11	208500		Shelf, Stud		Appelez-nous	-
12	521878		Shelf Stud		Appelez-nous	-
13	936787		Shelf, Cantilever		Appelez-nous	-
14	849021		Shelf Trim, Cantilever		Appelez-nous	-
15	944369		Glass, Cantilever Shelf		Appelez-nous	-
16	849028		Reflector, Cantilever		Appelez-nous	-
17	945065		Shelf, Cantilever		Appelez-nous	-
18	945141		Trim, Shelf Front		Appelez-nous	-
19	945140		Glass, Cantilever Shelf		Appelez-nous	-
20	945139		Reflector, Cantilever Shelf		Appelez-nous	-
21	936793		Frame, Cantilever Shelf		Appelez-nous	-
22	985518		Rollout Shelf, Cantilever		Appelez-nous	-
23	849021		Trim, Shelf Front		Appelez-nous	-
24	935417		Bin, Rollout Plastic		Appelez-nous	-
25	935119		Pan Slide & Cover		Appelez-nous	-
26	935120		Pan Slide & Cover (crisper)		Appelez-nous	-
26	1101202		Pan Slide & Cover (for Platinum Model Only)		Appelez-nous	-
27	982588		Crisper Gasket Rear		Appelez-nous	-
28	982587		Crisper Gasket Front		Appelez-nous	-
29	943112		Pan Crisper		Appelez-nous	-
30	942234		Housing, Humidity Control		Appelez-nous	-
31	942235		Slide, Humidity Control		Appelez-nous	-
32	942236		Seal, Humidity Control		Appelez-nous	-
33	489041		Screw, 6-19 X 7/16		Appelez-nous	-
34	943114		Front Cover, Crisper		Appelez-nous	-
34	1100399		Front Cover, Crisper (for Platinum Model Only)		Appelez-nous	-
35	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 8.28
36	984750		Overlay, Front Cover		Appelez-nous	-
37	840037		Pan (meat)		Appelez-nous	-
38	943121		Front Cover, Meat Pan		Appelez-nous	-
38	1101201		Front Cover, Meat (for Platinum Model Only)		Appelez-nous	-
39	WP982704		Container Utility   (Replaces: 935139)				$ 32.55
40	988364		Light Lens, Lower		Appelez-nous	-
41	877409		List, Parts		Appelez-nous	-
41	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
41	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
41	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
41	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
41	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
41	945063		Shelf Ladder		Appelez-nous	-
41	833938		Kit, Terminal Connector				$ 8.47
41	940100		Tech Sheet		Appelez-nous	-
41	944015		Consumer Buy Guide		Appelez-nous	-
41	946878		Energy Guide		Appelez-nous	-
41	944014		Guide, Use & Care		Appelez-nous	-
41	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
41	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
41	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
41	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
41	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
41	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
41	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
41	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
41	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
41	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
41	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
41	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
41	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
41	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
41	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
41	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
41	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
41	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 243.14
41	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
41	WP503695		Cork Sealer   (Replaces: 503495)				$ 123.84
41	511881		Lacquer, Aluminum (12 Oz. Spray Can)				$ 309.28
41	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
41	WP542638		Grease, Silicone (2 Oz.)   (Replaces: 481634)			Immediately	$ 12.78
41	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
41	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 116.46
41	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
41	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
