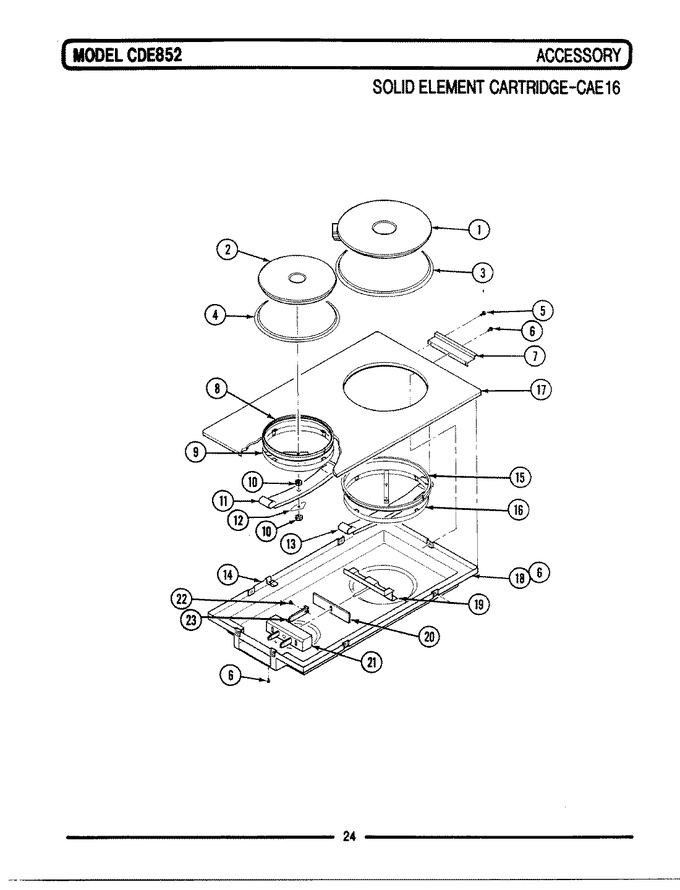

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	703413		Element, Solid (lg)		Appelez-nous	-
2	WP3147131		Element, Solid (sm)   (Replaces: Y703414)				$ 257.00
3	Y703774		Glass, Screened (blk)		Appelez-nous	-
4	Y703473		Trim Ring Sm Black		Appelez-nous	-
5	WP74004005		Screw   (Replaces: Y708359)				$ 7.79
6	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.88
7	703479		Handle		Appelez-nous	-
8	712195		Seal-small		Appelez-nous	-
9	703475		Collar (sm)		Appelez-nous	-
10	703417		Nut, Hex		Appelez-nous	-
11	703408		Bracket, Small		Appelez-nous	-
12	703416		Bracket (sm)		Appelez-nous	-
13	DE81-07480A		Bracket, Large   (Replaces: 703407)				$ 463.36
14	Y708910		Clip		Appelez-nous	-
15	712194		Seal-large		Appelez-nous	-
16	703476		Collar (lg)		Appelez-nous	-
18	703406		Pan, Cartridge		Appelez-nous	-
19	Y700648		Bracket, Retaining Assy.		Appelez-nous	-
20	708834		Insulator, Contact Spade				$ 14.17
21	WPY708730		Block, Terminal   (Replaces: Y708730)			Immediately	$ 91.81
22	WP488234		Screw   (Replaces: 708861)				$ 6.37
23	Y708572		Spade, Contact			Immediately	$ 11.91
