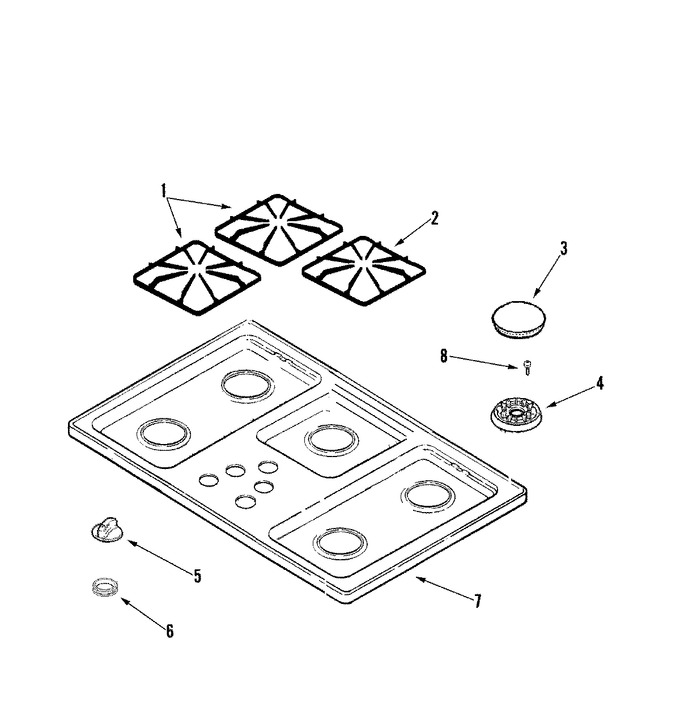

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001059 | Grate (blk) | 10 |
|
- | ||||
| 2 | 74001653 | Grate (blk) | 10 |
|
- | ||||
| 3 | WP74007925 | Cap, Burner (med-blk) (Replaces: 74007925) | 10 |
|
$ 91.15 | ||||
| 4 | WPW10406797 | Base, Burner (Replaces: 74007698) | 10 |
|
$ 83.62 | ||||
| 5 | 74007701 | Knob, Burner (bsq) | 10 |
|
- | ||||
| 6 | WP74007705 | Grommet (Replaces: 74007705) | 10 |
|
Immediately | $ 7.14 | |||
| 7 | 74007923 | Top, Main (bsq) | 10 |
|
- | ||||
| 8 | W11772394 | Screw, Burner Base (Replaces: 74007714) | 10 |
|
Immediately | $ 11.90 |
