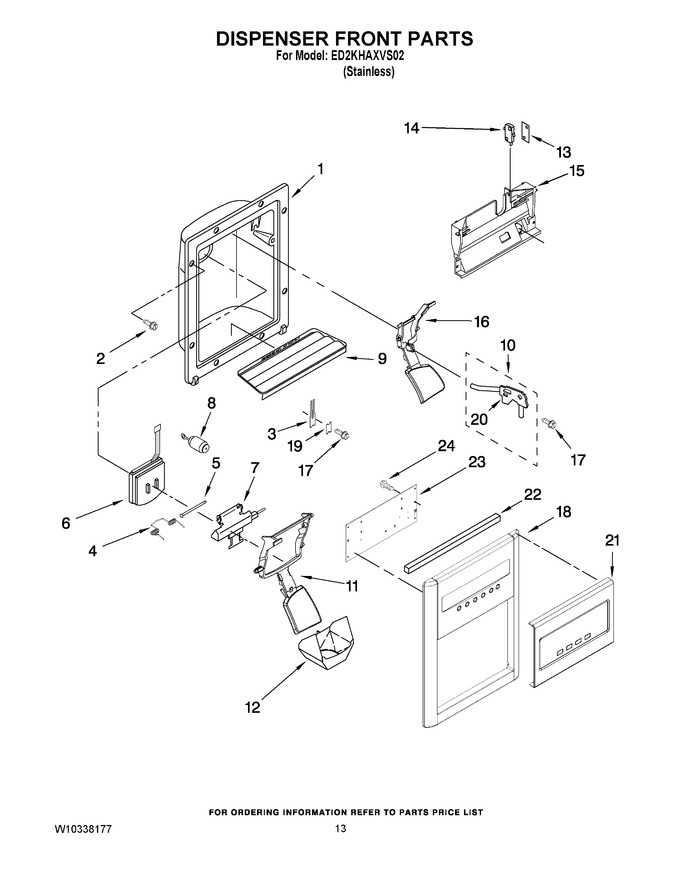

08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 11.12
4	WPW10224328		Spring, Torsion   (Replaces: 2304772)				$ 78.66
5	WP2196195		Pin   (Replaces: 2196195)				$ 13.78
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 24.15
7	2304355		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	WP2206671B		Grille, Overflow   (Replaces: 2206671B)				$ 65.25
10	8201537		Water Fitting Assembly (includes Water Tube)   (Replaces: W10133007)				$ 126.76
11	WPW10152854		Lever, Ice Dispenser   (Replaces: W10152854)				$ 98.10
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 27.02
13	625834		Spacer, Switch (2)				$ 7.99
14	WP2162361		Switch (2)   (Replaces: 2162361)			Immediately	$ 25.84
15	W10728484		Bracket, Control   (Replaces: W10206221)				$ 54.17
16	WPW10152859		Lever, Water Dispenser   (Replaces: W10152859)			Immediately	$ 92.54
17	WP3400906		Screw   (Replaces: 489000)				$ 8.15
18	W10157654		Front Cover Assembly (includes 21, 22 23, & 24)		Appelez-nous	-
19	WP2195051		Strain Relief   (Replaces: 2195051)				$ 11.29
20	WP2304673		Bracket, Dispenser   (Replaces: 2304673)				$ 14.74
21	N/P		Fascia, Disp (not Available, Order No.18)		Appelez-nous	-
22	2305571		Gasket				$ 24.70
23	2321748		Control Board, Lcd				$ 224.49
24	2006254		Screw, Board   (Replaces: 489214)				$ 12.41
