SELECT A DIAGRAM

01 - Cabinet


02 - Liner

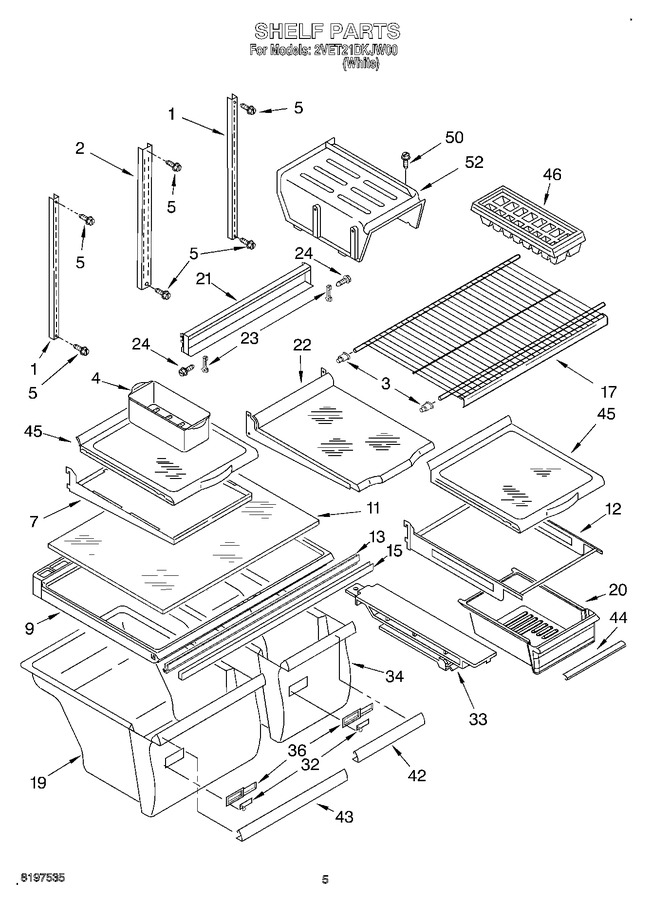

03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2202821		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mounting   (Replaces: 2163762)			Immediately	$ 14.70
4	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
5	WP489478		Screw   (Replaces: 489478)				$ 8.18
7	2174446		Frame Assembly, Shelf				$ 106.01
9	WP2314548		Cover, Crisper   (Replaces: 2195342)				$ 259.83
11	WP2169921		Glass, Crisper Cover   (Replaces: 2169921)				$ 258.93
12	2179716		Frame Assembly, Meat Shelf		Appelez-nous	-
13	2172683		Gasket, Crisper Cover		Appelez-nous	-
15	WP2172748		Crisper Support   (Replaces: 2172541)				$ 102.08
17	WP2176275		Shelf, Freezer   (Replaces: 2176275)				$ 123.40
19	W10854037		Pan, Crisper Wide (includes 32,36 & 43).   (Replaces: 2201025)			Immediately	$ 179.19
20	WP2218127K		Pan, Meat   (Replaces: 2201031)				$ 146.80
21	2176240		Track Assembly, Shelf		Appelez-nous	-
22	2195349		Shelf Assembly, Spillguard L/a		Appelez-nous	-
23	2169608		Hook, Shelf		Appelez-nous	-
24	489419		Screw		Appelez-nous	-
32	WP2176222		Slide, Crisper   (Replaces: 2176222)				$ 27.35
33	WP2163835		Crisper Track, Center   (Replaces: 2163835)			Immediately	$ 36.48
34	W10856580		Pan, Crisper (includes 32,36 & 42).   (Replaces: 2201024)			Immediately	$ 177.03
36	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 15.81
42	2195340		Trim, Crisper Pan				$ 7.07
43	WP2195341		Trim, Crisper Pan   (Replaces: 2195341)				$ 86.67
44	2176356		Trim, Meat Pan		Appelez-nous	-
45	2195346		Shelf Assembly, Spillguard		Appelez-nous	-
46	WP841180A		Ice Cube Tray   (Replaces: 841180)			Immediately	$ 47.84
50	WP489478		Screw   (Replaces: 489478)				$ 8.18
52	2183995		Shelf, Ice Tray		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
