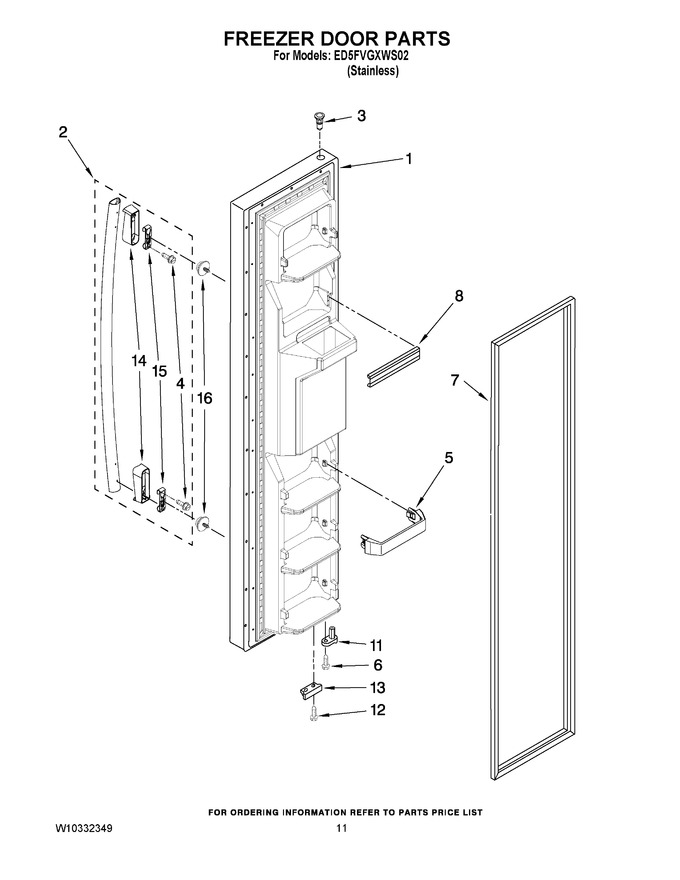

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295757		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2	W10273555		Handle, Assy   (Replaces: W10172031)				$ 197.28
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
4	WP8533988		Screw   (Replaces: W10155511)			Immediately	$ 8.78
5	WP2309718		Trivet (4)   (Replaces: 2309718)				$ 61.49
6	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
7	2159082		Door Gasket, Magnetic   (Replaces: 2221314)				$ 332.49
8	WP2309718		Trim, Door Shelf   (Replaces: 2309718)				$ 61.49
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	W10185567		Bracket, Door Stop		Appelez-nous	-
14	W10171987		End Cap		Appelez-nous	-
15	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
16	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 9.65
