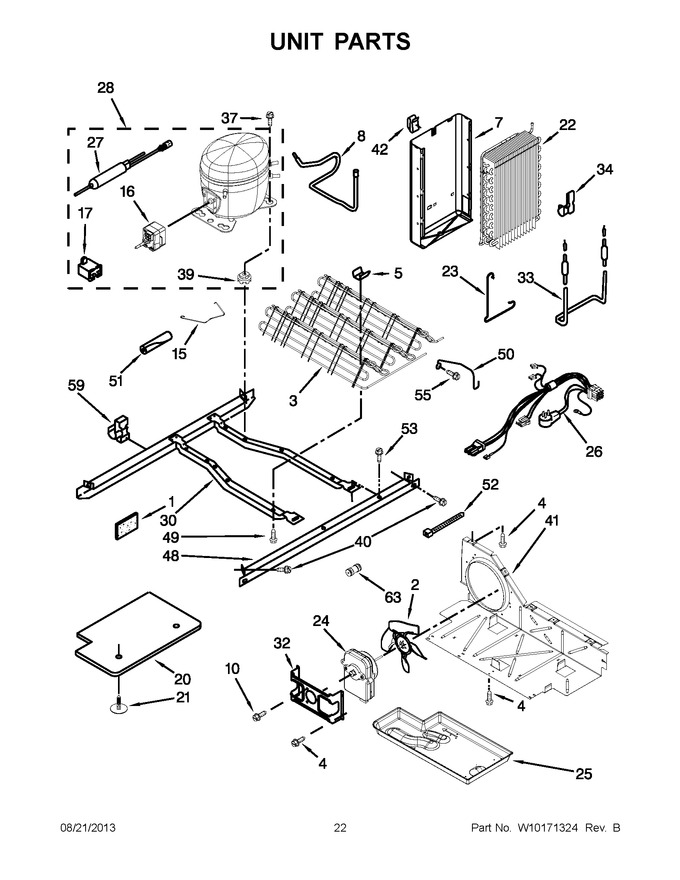

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11553819		Sealer, Insulation   (Replaces: 2169104)			Immediately	$ 13.29
2	W11458267		Blade, Fan   (Replaces: 2225834)			Immediately	$ 22.67
3	2324712		Condenser Assembly   (Replaces: W10121484)				$ 291.11
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
5	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 17.44
7	2217194		Heat Shield And Drain Pan		Appelez-nous	-
8	2205765		Tube, Suction				$ 36.04
10	WP8533993		Screw   (Replaces: 8533993)				$ 10.09
15	2255199		Bale Strap		Appelez-nous	-
16	W10896198		Device, Start   (Replaces: 2304884)				$ 175.69
17	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 52.97
20	2304899		Unit Cover, Bottom		Appelez-nous	-
21	489396		Clip				$ 10.13
22	WP2188823		Assembly, Evaporator   (Replaces: 2188823)			Immediately	$ 343.34
23	2161324		Clip, Defrost Heater		Appelez-nous	-
24	W10124096		Motor, Condenser   (Replaces: 2188727)			Immediately	$ 146.83
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 142.34
26	2187510		Harness, Unit		Appelez-nous	-
27	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 27.70
28	W10139462		Compressor   (Replaces: W10120459)				$ 601.50
30	2304904		Frame, Unit Mounting		Appelez-nous	-
32	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 11.64
33	WP2323198		Hearter, Defrost   (Replaces: 2323198)			Immediately	$ 81.63
34	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
37	876811		Screw   (Replaces: 489373)				$ 7.01
39	WP4387558		Grommet   (Replaces: 4387558)				$ 6.57
40	489340		Bolt		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 91.08
42	2155547		Clip, Heat Shield		Appelez-nous	-
48	2305374		Rail, Unit				$ 76.20
49	W11544659		Screw   (Replaces: 8281232)				$ 12.92
50	2260517		Guard, Fan		Appelez-nous	-
51	W11751592		Sleeve, Pressure Switch Hose   (Replaces: 2161302)			Immediately	$ 19.19
52	WPW10339879		Tie, Wire   (Replaces: 2172840)				$ 7.47
53	WP489427		Screw   (Replaces: 489427)				$ 7.06
55	WP489478		Screw   (Replaces: 489478)				$ 7.36
59	2208280		Clip, Wire And Tube		Appelez-nous	-
63	WPW10334458		Connector, Water Tube   (Replaces: 2320322)				$ 20.40
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access			Immediately	$ 121.04
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access Ÿ``)				$ 123.53
NI	876764		Valve, Access			Immediately	$ 86.33
NI	N/P		Refrigerant Charge (4.25 Oz. (r-134a))		Appelez-nous	-
