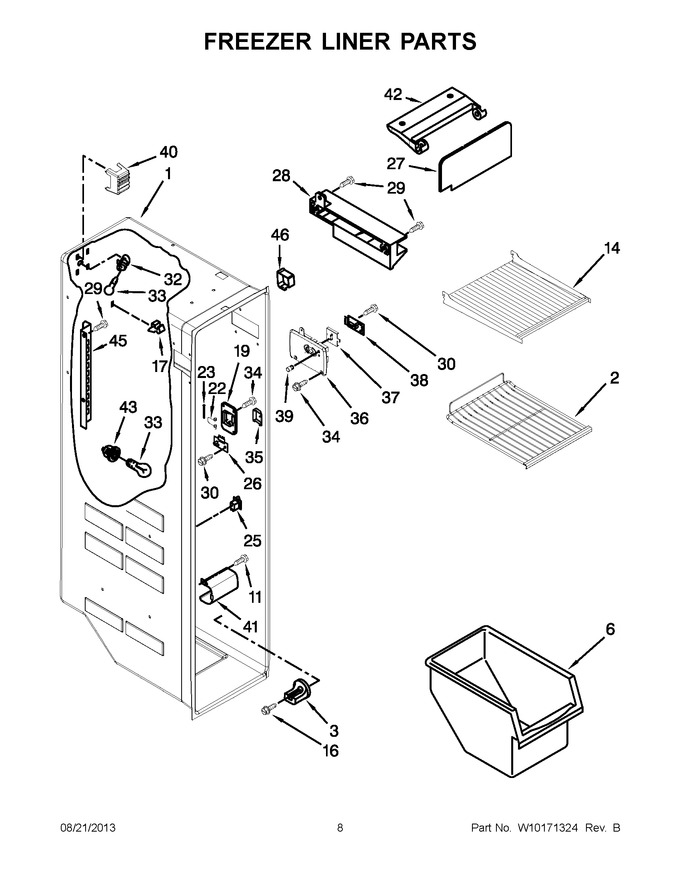

05 - Freezer Liner Parts


06 - Motor And Ice Bin Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Control Box Parts


12 - Unit Parts


13 - Icemaker Parts


14 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	2211746K		Shelf, Upper Slide Out		Appelez-nous	-
3	2196207		Stud, Rear				$ 7.61
6	WP2182971		Bin, Freezer   (Replaces: 2182971)				$ 132.50
11	W10142289		Screw   (Replaces: 3400893)				$ 8.65
14	2205837K		Shelf, Lower Cantilever				$ 42.67
16	W10759522		Screw   (Replaces: W10004810)				$ 7.42
17	2215823		Clip, Air Duct   (Replaces: 842534)				$ 9.85
19	WP2198587		Cover, Emitter   (Replaces: 2198587)				$ 99.75
22	WP2198635		Spring, Door   (Replaces: 2198635)				$ 82.29
23	WP2198634		Pin, Door   (Replaces: 2198634)				$ 16.79
25	W11457217		Switch, Rocker Arm, Combination(freezer)   (Replaces: 1115373)				$ 36.08
26	W11629974		Circuit Board, Emitter   (Replaces: 2220398)			Immediately	$ 379.01
27	WP2255720		Cover, Ice Maker   (Replaces: 2255588)				$ 70.70
28	2212321		Slide, Icemaker Mounting (right Hand)				$ 67.14
29	WP489478		Screw   (Replaces: 489478)				$ 7.36
30	2006254		Screw   (Replaces: 489214)				$ 12.41
32	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 104.10
33	W11679940		Bulb, Light   (Replaces: 2255743)			Immediately	$ 10.17
34	WPW10142283		Screw (white)   (Replaces: 8281185)				$ 9.30
35	WP2198633		Flipper Shut Off   (Replaces: 2198633)			Immediately	$ 45.61
36	2255558		Cover, Receiver				$ 41.19
37	2315398		Slide, Shutoff   (Replaces: 2255562)				$ 10.31
38	W11629974		Circuit Board, Receiver   (Replaces: 2255114)			Immediately	$ 379.01
39	WP2198643		Lens, Receiver   (Replaces: 2198643)				$ 7.73
40	2198589		Shield, Light		Appelez-nous	-
41	W11298978		Light Lens Cover Cover   (Replaces: 2212340)				$ 88.71
42	WP2198641		Bracket, Icemaker Cover   (Replaces: 2198641)				$ 6.80
43	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 95.54
45	2198609		Ladder (left Hand)				$ 42.40
45	2198610		Ladder (right Hand)				$ 63.20
46	2303234		Shield, Wiring		Appelez-nous	-
