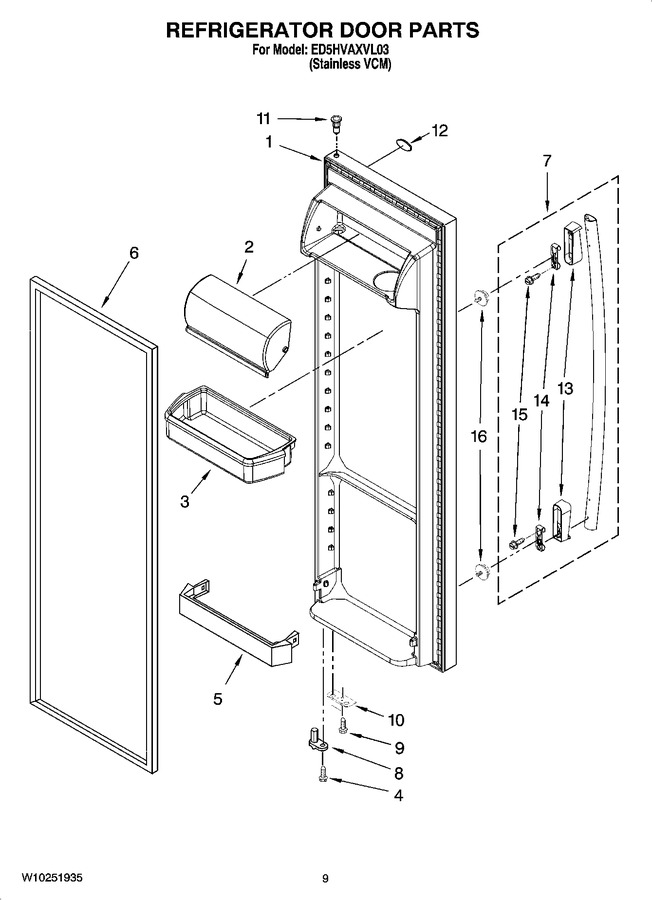

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2326326LG		Refrigerator Door (includes Item 6) (stainless-vcm)		Appelez-nous	-
2	WP2256101		Compartment Door   (Replaces: 2256101)			Immediately	$ 80.48
3	WP2203828		Shelf Bin (3)   (Replaces: 2203828K)				$ 90.27
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
5	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 70.75
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 299.48
7	W10273555		Handle, Assy (black)   (Replaces: W10172031)				$ 177.55
8	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.48
9	WP489483		Screw   (Replaces: 489420)				$ 10.27
10	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 38.51
11	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.34
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 83.86
13	W10171987		Handle, Endcap (black)		Appelez-nous	-
14	WP2255411		Clip, Mounting   (Replaces: 2255411)				$ 32.90
15	WP8533988		Screw, Clip   (Replaces: W10155511)			Immediately	$ 7.90
16	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 8.69
