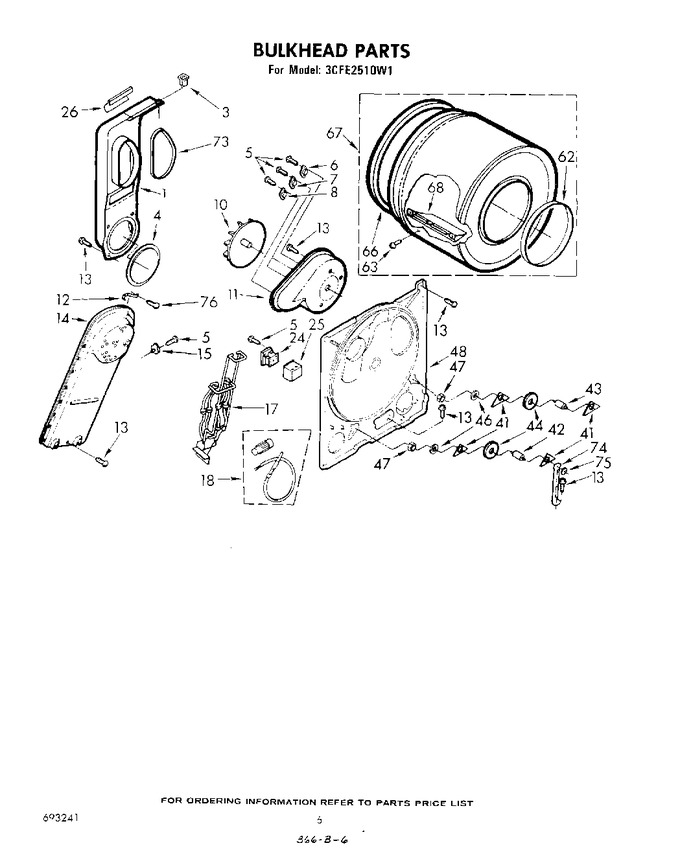

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 279505 | Lint Chute Assembly (Replaces: 299693) |
|
$ 285.97 | |||||
| 3 | 98460 | Nut, Push-in (2) |
|
$ 12.07 | |||||
| 4 | W11415783 | Seal (Replaces: 347139) |
|
Immediately | $ 17.23 | ||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 6 | 660368 | Thermostat, 180~f (82~c) |
|
- | |||||
| 6 | 295432 | Thermostat, 180~f (82~c) (alt.) |
|
- | |||||
| 6 | LS2-175 | Thermostat, 180~f (82~c) (alt.) (Replaces: 341197) |
|
Immediately | $ 24.60 | ||||
| 7 | WP694674 | Thermostat, 155~f (68~c) (alt.) (Replaces: 299620) |
|
Immediately | $ 75.63 | ||||
| 7 | LS2-155 | Thermostat, 155~f (68~c) (alt.) (Replaces: 341199) |
|
Immediately | $ 24.60 | ||||
| 7 | AT022 | Thermostat, 155 (Replaces: 660073) |
|
Immediately | $ 27.28 | ||||
| 8 | WP694674 | Thermostat, 140 (Replaces: 660040) |
|
Immediately | $ 75.63 | ||||
| 8 | LS2-140 | Thermostat, 140~f (60~c) (alt.) (Replaces: 342813) |
|
Immediately | $ 24.60 | ||||
| 8 | LS2-140 | Thermostat, 140~f (60~c) (alt.) (Replaces: 342812) |
|
Immediately | $ 24.60 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 343939) |
|
Immediately | $ 33.89 | ||||
| 11 | 348494 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 337272) |
|
$ 13.55 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 14 | 685459 | Box, Heater |
|
- | |||||
| 15 | LS3-270 | Thermostat, 290~f (143~c) (alt.) (Replaces: 342764) |
|
$ 17.91 | |||||
| 15 | 279054 | Thermostat, 290~f (143~c) (Replaces: 660099) |
|
$ 137.55 | |||||
| 15 | LS2-290 | Thermostat, 290~f (143~c) (alt.) (Replaces: 342762) |
|
Immediately | $ 25.11 | ||||
| 17 | 685592 | Heater Element (includes Illus. 18) |
|
- | |||||
| 18 | 279139 | Wire Kit (for Heater Element Wiring Harness Repair) |
|
- | |||||
| 24 | 688642 | Relay, 50 Hz. |
|
- | |||||
| 25 | 691220 | Shield, Relay |
|
- | |||||
| 26 | 686770 | Protector Support |
|
- | |||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.71 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 347364) |
|
Immediately | $ 65.44 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 339489) |
|
Immediately | $ 51.09 | ||||
| 44 | 349241T | Roller, Support (Replaces: 349241) |
|
Immediately | $ 26.58 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 6.80 | |||||
| 47 | 120377 | Nut, 3/8-16 |
|
- | |||||
| 48 | 685769 | Bulkhead |
|
- | |||||
| 62 | WP3394508 | Bearing, Ring (Replaces: 297936) |
|
$ 118.67 | |||||
| 63 | 690372 | Screw, 11-16 X 7/8 |
|
- | |||||
| 66 | 239087 | Seal, Rear Drum (Replaces: 337449) |
|
Immediately | $ 57.26 | ||||
| 67 | 3396775 | Drum Assembly (Replaces: 337928) |
|
$ 317.73 | |||||
| 68 | WP342847 | Baffle, Drum (Replaces: 342847) |
|
$ 138.90 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.15 | ||||
| 74 | 348945 | Bracket, Support Shaft |
|
- | |||||
| 75 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.42 | |||||
| 76 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.62 |
