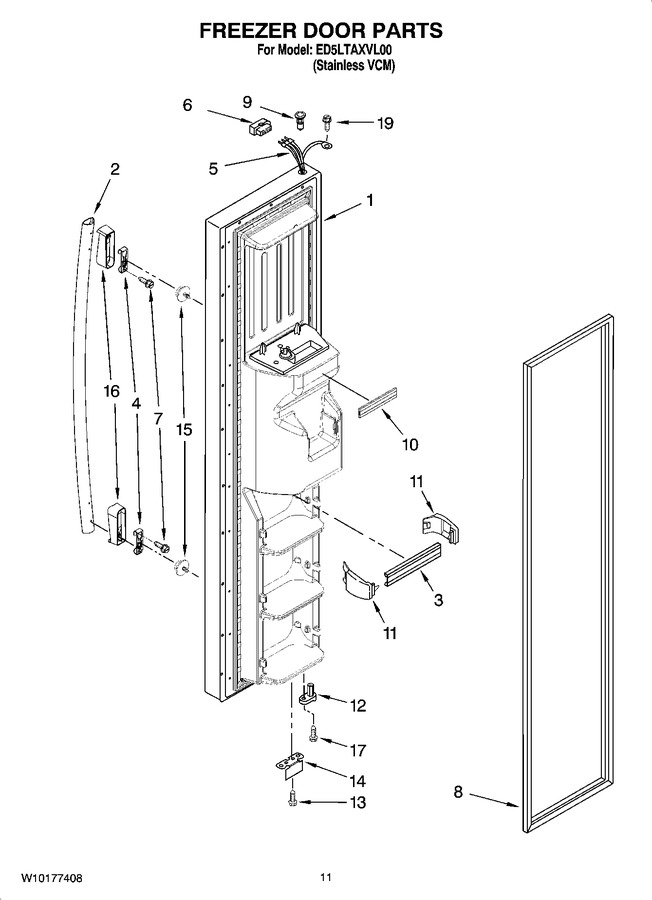

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2327204L		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Vcm)		Appelez-nous	-
2	W10273555		Handle (includes 15) (stainless)   (Replaces: W10127768)				$ 177.55
3	2313199		Door Trim (3)   (Replaces: 2313199K)				$ 81.84
4	WP2255411		Clip   (Replaces: 2255411)				$ 32.90
5	2198619		Dispenser Harness		Appelez-nous	-
6	WP2154473		Connector   (Replaces: 2154473)				$ 22.35
7	WP8533988		Screw (4)   (Replaces: W10155511)			Immediately	$ 7.90
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2309533)				$ 299.24
9	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.34
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 21.84
11	2195917		Endcap (6)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.48
13	WP489483		Screw   (Replaces: 489420)				$ 10.27
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 38.51
15	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 8.69
16	W10152862		Endcap, Handle		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
19	WP489128		Screw   (Replaces: 488500)				$ 10.26

    View Diagram in Separate Window       Print Part List
