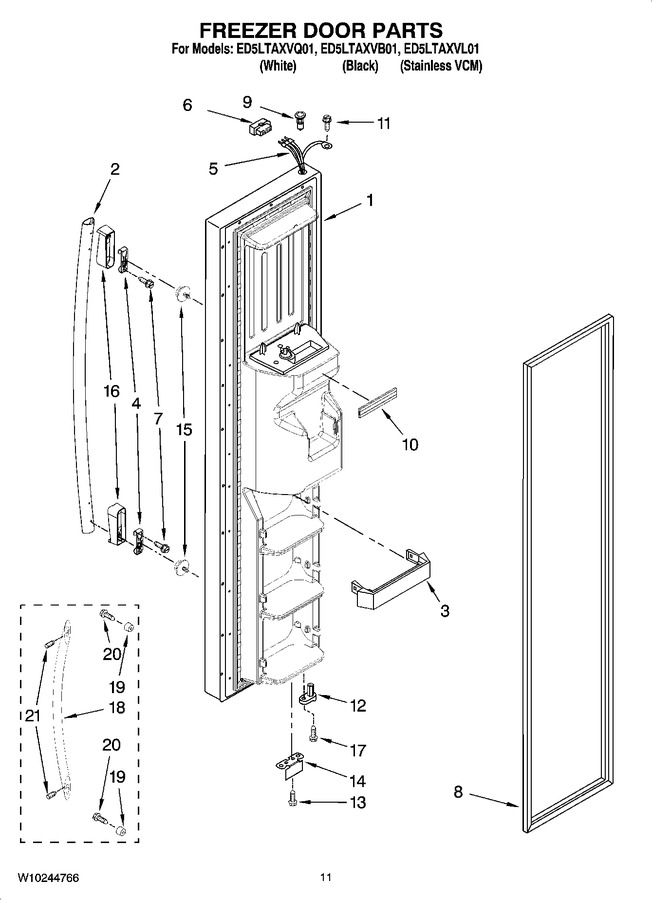

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2327204B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2327204L		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Vcm)		Appelez-nous	-
1	2327204W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10273555		Handle (includes 15) (stainless)   (Replaces: W10127768)				$ 197.28
3	WP2309718		Trivet (3)   (Replaces: 2309718)				$ 61.49
4	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
5	2198619		Dispenser Harness		Appelez-nous	-
6	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
7	WP8533988		Screw (4)   (Replaces: W10155511)			Immediately	$ 8.78
8	2159074		Door Gasket, Magnetic (white)   (Replaces: 2309532)				$ 325.70
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2309533)				$ 332.49
9	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 24.27
11	WP489128		Screw   (Replaces: 488500)				$ 11.40
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
15	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
16	W10152862		Endcap, Handle		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
18	WP2254600W		Handle (white)   (Replaces: 2254600W)				$ 246.90
18	WP2254600B		Handle (black)   (Replaces: 2254600B)				$ 219.21
19	WPW10170540		Mounting Stud   (Replaces: 2219698)			Immediately	$ 9.66
20	WP488163		Screw   (Replaces: 488208)				$ 7.92
21	WPW10010150		Set Screw (black)   (Replaces: W10010150)				$ 8.57
21	W11366418		Set Screw (white)   (Replaces: W10010140)			Immediately	$ 18.43
