SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

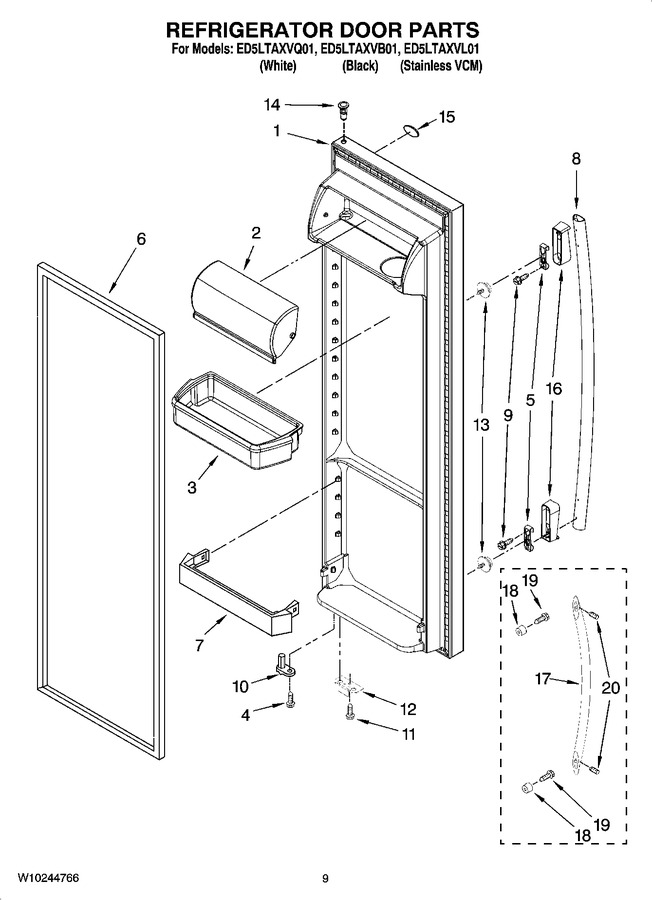

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2217535B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	2217535L		Refrigerator Door (includes Item 6) (stainless Vcm)		Appelez-nous	-
1	2217535W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	WP2256101		Compartment Door   (Replaces: 2256101)			Immediately	$ 89.42
3	WP2203828		Shelf Bin (3)   (Replaces: 2203828)				$ 100.30
4	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
5	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309528)			Immediately	$ 333.00
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2309529)				$ 332.76
7	WP2156022		Shelf Bin   (Replaces: 2156022)			Immediately	$ 78.61
8	W10273555		Handle (includes 13) (stainless)   (Replaces: W10127768)				$ 197.28
9	WP8533988		Screw (4)   (Replaces: W10155511)			Immediately	$ 8.78
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
12	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
13	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
14	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
15	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
16	W10152862		Endcap, Handle		Appelez-nous	-
17	WP2254600B		Handle (black)   (Replaces: 2254600B)				$ 219.21
17	WP2254600W		Handle (white)   (Replaces: 2254600W)				$ 246.90
18	WPW10170540		Mounting Stud   (Replaces: 2219698)			Immediately	$ 9.66
19	WP488163		Screw   (Replaces: 488208)				$ 7.92
20	WPW10010150		Set Screw (black)   (Replaces: W10010150)				$ 8.57
20	W11366418		Set Screw (white)   (Replaces: W10010140)			Immediately	$ 18.43

    View Diagram in Separate Window       Print Part List
