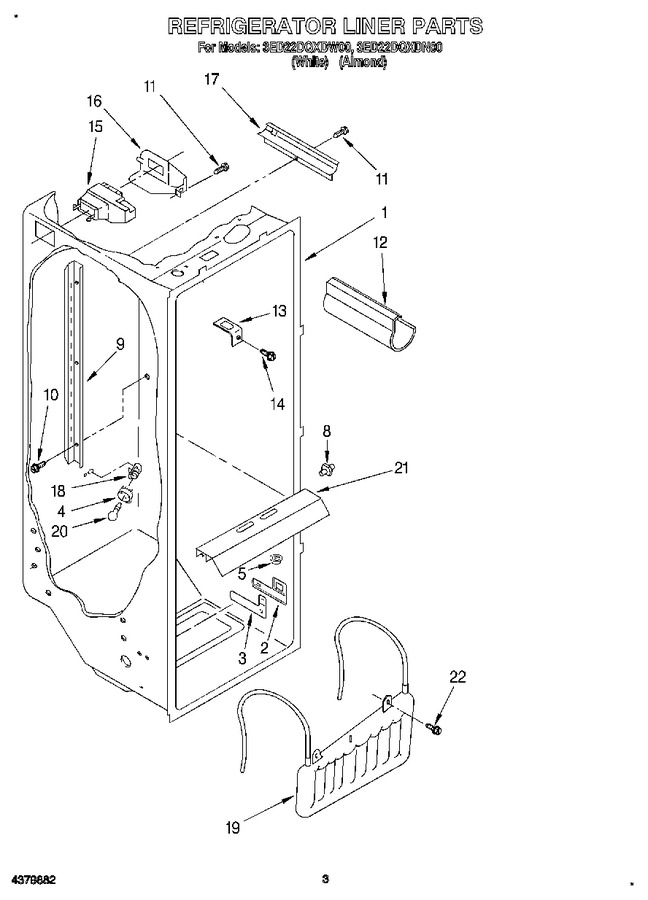

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control   (Replaces: 2182762)				$ 95.84
3	2182757		Slide Meat Pan Control				$ 75.15
4	WP2175210		Shroud, Bracket   (Replaces: 2169193)				$ 86.74
5	2171846		Release Valve				$ 18.99
8	4388538		Stud, Rear (6)   (Replaces: 1110718)			Immediately	$ 32.85
9	2171995		Shelf Ladder		Appelez-nous	-
10	WP488729		Screw   (Replaces: 487539)			Immediately	$ 8.28
11	W10759522		Screw (2)   (Replaces: 486298)				$ 8.24
12	W10777924		Wine Rack   (Replaces: 2179374)				$ 24.78
13	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 36.10
14	WP488488		Screw   (Replaces: 489290)				$ 8.52
15	WPW10151374		Air Diffuser Assembly   (Replaces: 2176173)			Immediately	$ 104.77
16	2152019		Cover, Air Diffuser				$ 90.33
17	2150331		Cover, Conduit				$ 25.62
18	4387478		Socket   (Replaces: 2162085)			Immediately	$ 115.67
19	WP2256126		Reservoir   (Replaces: 2155290)				$ 177.29
20	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
21	2174436		Light Lens				$ 51.38
22	488280		Screw (2)		Appelez-nous	-
