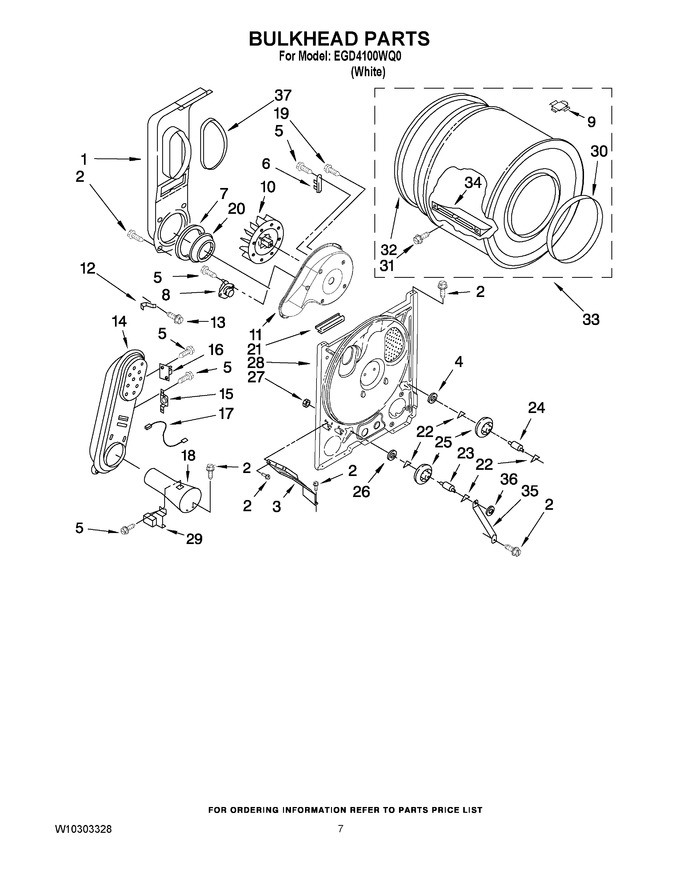

01 - Top And Console Parts
02 - Cabinet Parts
03 - 8318272 Burner Assembly
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 279505 | Lint Chute, Assembly (Replaces: 694283) |
|
$ 285.97 | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 3 | W11398682 | Bracket, Bulkhead (Replaces: 3406022) |
|
$ 52.99 | |||||
| 4 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.07 | |||||
| 5 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 6 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 7 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 17.23 | ||||
| 8 | AT022 | Thermostat, Internal-bias (Replaces: 660039) |
|
Immediately | $ 27.28 | ||||
| 9 | 8066086 | Drum, Hole Plug |
|
$ 10.16 | |||||
| 10 | WP694089 | Wheel, Blower (includes Illus. 27) (Replaces: 694089) |
|
Immediately | $ 33.89 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 8577230) |
|
$ 168.17 | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 13.55 | |||||
| 13 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 7.43 | |||||
| 14 | 279980 | Box, Heater (Replaces: 8530285) |
|
$ 298.16 | |||||
| 15 | W11050897 | Thermostat, 205~f (96~c) (Replaces: 3403140) |
|
Immediately | $ 13.77 | ||||
| 16 | W11050897 | Kit, Thermal Cut-off (includes Illus. 15) (Replaces: 280010) |
|
Immediately | $ 13.77 | ||||
| 17 | WP3401707 | Jumper Wire (Replaces: 3401707) |
|
$ 77.93 | |||||
| 18 | WP8066048 | Funnel, Burner (Replaces: 8066048) |
|
$ 136.51 | |||||
| 19 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 20 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 21.06 | |||||
| 21 | 686889 | Pad, Blower Housing (Replaces: 3392247) |
|
- | |||||
| 22 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.71 | ||||
| 23 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 65.44 | ||||
| 24 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 51.09 | ||||
| 25 | 349241T | Roller, Support (Replaces: 3397590) |
|
Immediately | $ 26.58 | ||||
| 26 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 6.80 | |||||
| 27 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 6.80 | ||||
| 28 | 8529955 | Bulkhead |
|
- | |||||
| 29 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 46.72 | ||||
| 30 | WP3394509 | Ring, Bearing (Replaces: 3394509) |
|
$ 118.49 | |||||
| 31 | W10853898 | Screw, 11-16 X 3/4 (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 32 | 239087 | Seal, Rear Drum (Replaces: 8066085) |
|
Immediately | $ 57.26 | ||||
| 33 | 697760 | Drum Assembly (Replaces: 3396777) |
|
$ 391.63 | |||||
| 34 | WP342847 | Baffle, Drum (Replaces: 342847) |
|
$ 138.90 | |||||
| 35 | 3976435 | Bracket, Support |
|
$ 43.74 | |||||
| 36 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.42 | |||||
| 37 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.15 |
