SELECT A DIAGRAM

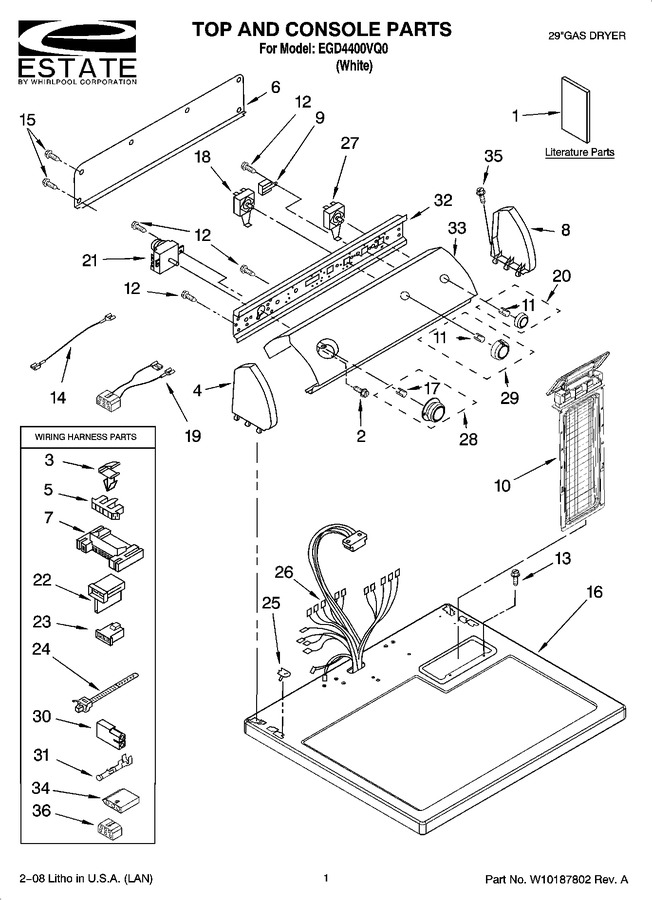

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8576793		Wiring Diagram		Appelez-nous	-
1	W10118620		Sheet, Cycle Feature		Appelez-nous	-
1	W10150630		Installation Instructions (english)		Appelez-nous	-
1	W10150631		Installation Instructions (spanish)		Appelez-nous	-
1	W10118621		Use & Care Guide		Appelez-nous	-
2	3400859		Screw, Grounding   (Replaces: 8533951)				$ 12.49
3	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.36
4	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 78.81
5	3397269		Connector, Timer				$ 25.55
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 121.78
7	3395683		Housing, Connector (motor)			Immediately	$ 49.01
8	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 78.81
9	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 49.17
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.43
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	3401674		Wire, Jumper (pts To Buzzer)				$ 34.37
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
16	8557930		Top		Appelez-nous	-
17	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.38
18	3405152		Switch, Guard				$ 117.96
19	8283292		Jumper Guard (on/off)		Appelez-nous	-
20	8538959		Knob, Push-to-start				$ 25.38
21	WP3976584		Timer Assembly (60 Hz.)   (Replaces: 3976584)				$ 342.16
22	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.42
23	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.57
24	3391249		Tie, Cable		Appelez-nous	-
25	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 6.98
26	8299876		Harness, Wiring		Appelez-nous	-
27	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 23.99
28	WP8557455		Timer Knob Assembly   (Replaces: 8538953)				$ 53.65
29	WP8538957		Knob, Control   (Replaces: 8538957)				$ 52.68
30	717252		Receptacle, 2 Way		Appelez-nous	-
31	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.25
32	8271418		Bracket, Control				$ 57.15
33	8578964		Panel, Control		Appelez-nous	-
34	3936144		Connector				$ 19.10
35	WP388326		Screw, Console   (Replaces: 388326)				$ 8.36
36	3347243		Connector 6-circuit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
