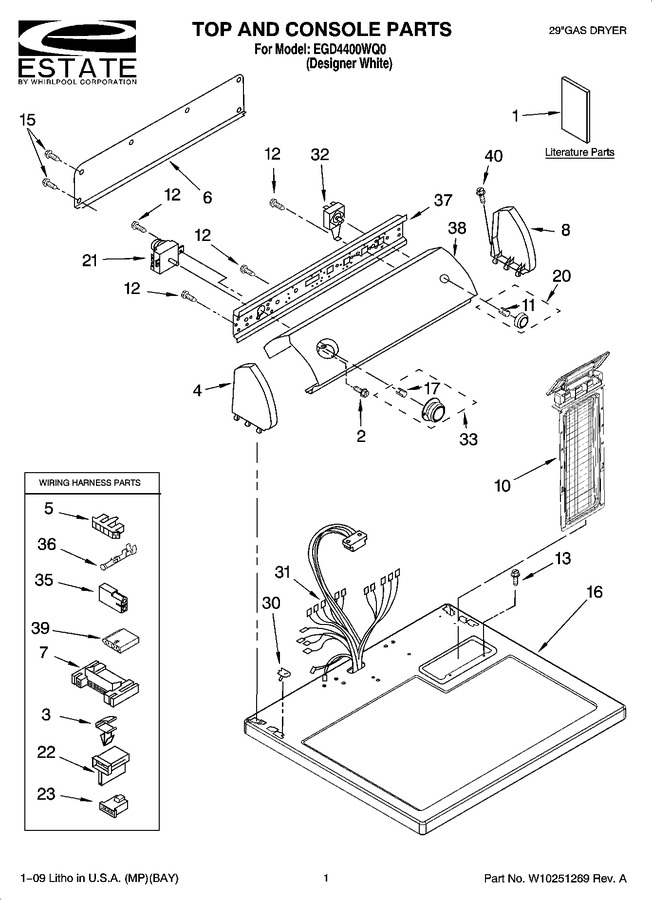

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10118621 | Use & Care Guide |
|
- | |||||
| 1 | W10118620 | Sheet, Cycle Feature |
|
- | |||||
| 1 | W10150630 | Installation Instructions |
|
- | |||||
| 1 | W10185979 | Wiring Diagram |
|
- | |||||
| 2 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 12.49 | |||||
| 3 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 4 | 279960 | Cap, End (l.h.) (Replaces: 8274437) |
|
$ 78.81 | |||||
| 5 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 6 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 121.78 | |||||
| 7 | 3395683 | Housing, Connector (motor) |
|
Immediately | $ 49.01 | ||||
| 8 | 279960 | Cap, End (r.h.) (Replaces: 8274434) |
|
$ 78.81 | |||||
| 10 | W11778253 | Screen, Lint (Replaces: 8558463) |
|
Immediately | $ 49.17 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (pts To Buzzer) (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 15 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 16 | 8557930 | Top |
|
- | |||||
| 17 | WP688805 | Clip (on/off) (Replaces: 688805) |
|
Immediately | $ 7.38 | ||||
| 20 | 8538959 | Knob, Push-to-start |
|
$ 25.38 | |||||
| 21 | WPW10185969 | Timer Assembly, 60 Hz. (Replaces: W10185969) |
|
$ 300.76 | |||||
| 22 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 5.42 | |||||
| 23 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 6.57 | |||||
| 30 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 6.98 | |||||
| 31 | W10186074 | Harness, Wiring |
|
- | |||||
| 32 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 23.99 | ||||
| 33 | WP8557455 | Timer Knob Assembly (Replaces: 8538953) |
|
$ 53.65 | |||||
| 35 | 717252 | Receptacle, 2 Way |
|
- | |||||
| 36 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.25 | |||||
| 37 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 38 | W10238702 | Panel, Control |
|
$ 173.68 | |||||
| 39 | 3936144 | Connector |
|
$ 19.10 | |||||
| 40 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.36 |
