SELECT A DIAGRAM

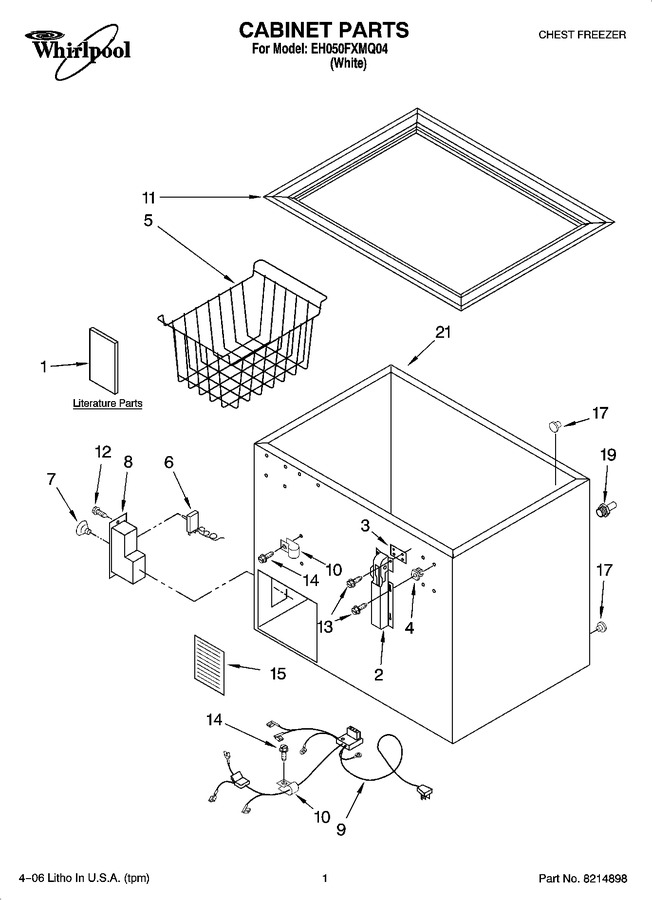

01 - Cabinet Parts
02 - Door Parts
03 - Unit Parts, Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2300216 | Owner`s Manual |
|
- | |||||
| 1 | 4356789 | Energy Guide/tag |
|
- | |||||
| 2 | 4356490 | Hinge Assembly |
|
$ 221.92 | |||||
| 3 | 1-17548-006 | Hinge Spacer (Replaces: 4356463) |
|
$ 19.58 | |||||
| 4 | 4356321 | Plastic, Grommet |
|
$ 12.30 | |||||
| 5 | 4356746 | Wire Basket |
|
- | |||||
| 6 | WP4-35940-001 | Thermostat (Replaces: 8210276) |
|
$ 226.59 | |||||
| 7 | 4356769 | Knob, Thermostat |
|
- | |||||
| 8 | W10682894 | Control Box (Replaces: 8210234) |
|
- | |||||
| 9 | 4-35130-004 | Harness, External Wiring (Replaces: 4356743) |
|
$ 220.13 | |||||
| 10 | 488946 | Plastic, Clip (2) (Replaces: 4356643) |
|
$ 19.32 | |||||
| 11 | 4356681 | Breaker Strip |
|
- | |||||
| 12 | 3-24004-049 | Screw (Replaces: 4356583) |
|
- | |||||
| 13 | 4356491 | Screw |
|
- | |||||
| 14 | W11233072 | Screw (Replaces: 4356496) |
|
Immediately | $ 13.25 | ||||
| 15 | 4356712 | Access Panel |
|
- | |||||
| 17 | 4356713 | Drain Cap |
|
- | |||||
| 19 | W11663505 | Adapter, Drain (Replaces: 4356747) |
|
$ 16.23 |
