View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

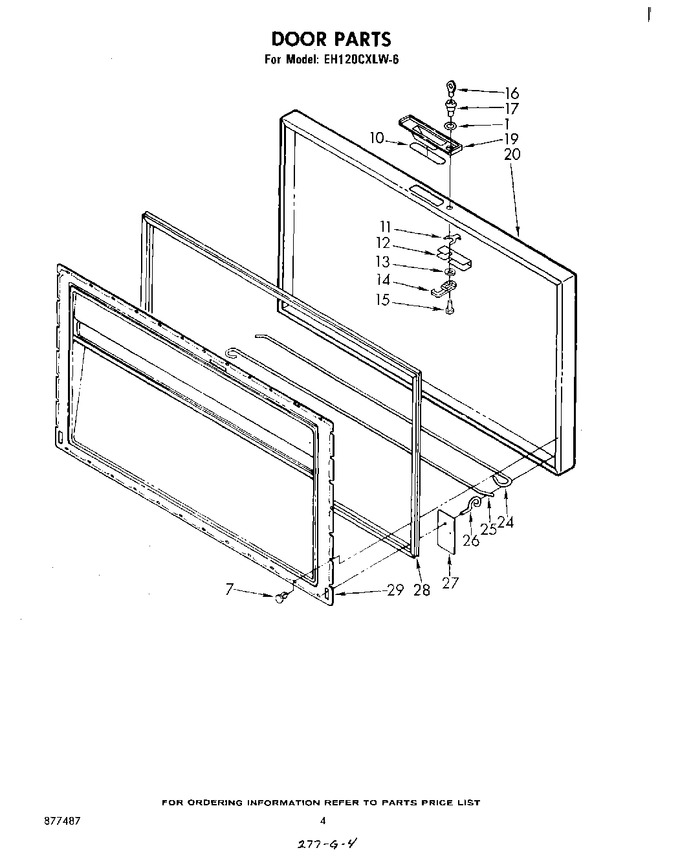

| 1 | 753610 | ``o`` Ring |
|
- | |||||
| 7 | 596788 | Clip (32) (replacement Clips Included W/items 20, 24 25, 26, 28, & 29) |
|
$ 5.51 | |||||
| 10 | 589208 | Gasket, Handle |
|
- | |||||
| 11 | 586335 | Clip, Lock |
|
- | |||||
| 12 | 753586 | Shroud, Lock |
|
- | |||||
| 13 | 581219 | Plate, Lock |
|
- | |||||
| 14 | 586468 | Hook, Lock |
|
- | |||||
| 15 | 681569 | Screw, No. 10 X 5/8 |
|
- | |||||
| 16 | WP842177 | Key, Lock (Replaces: 842177) |
|
$ 7.66 | |||||
| 17 | 586331 | Lock Assembly |
|
- | |||||
| 19 | 728290 | Handle |
|
- | |||||
| 20 | 728291 | Panel, Door Exterior |
|
- | |||||
| 24 | 728034 | Bar, L.h. Torsion |
|
- | |||||
| 25 | 728035 | Bar, R.h. Torsion |
|
- | |||||
| 26 | 753875 | Hinge, R.h. |
|
- | |||||
| 26 | 753874 | Hinge, L.h. |
|
- | |||||
| 27 | 566219 | Cover, Hinge Rod (2) |
|
- | |||||
| 28 | 592944 | Gasket, Door |
|
- | |||||
| 29 | 753999 | Panel, Door Interior |
|
- |
