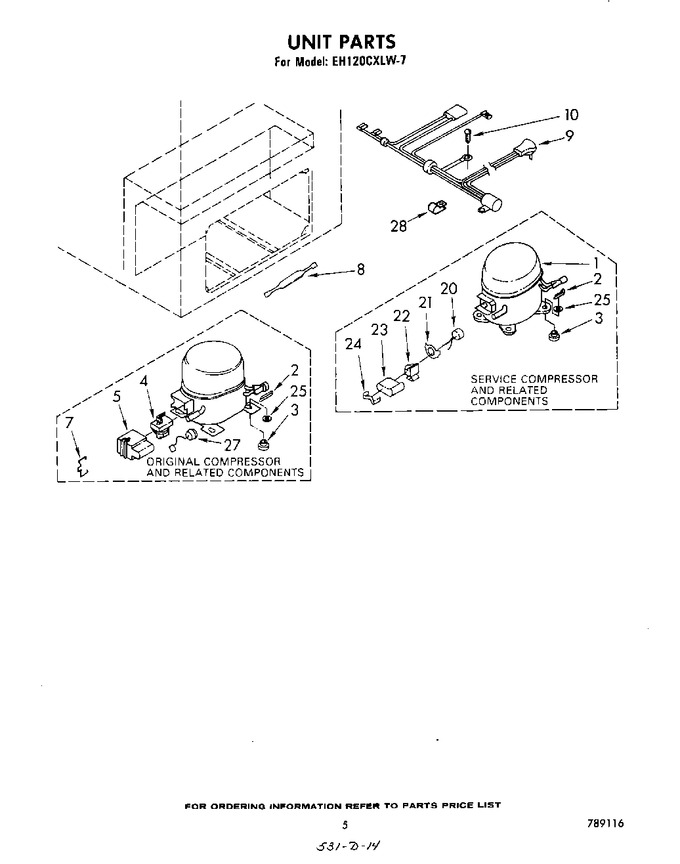

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 482736 | Compressor (service Replacement) (items No.20, 21, 22, 23 & 24 Included With Service Compressor) (al |
|
- | |||||
| 2 | 596514 | Clip, Compressor Mounting (4) |
|
- | |||||
| 3 | 876811 | Grommet, Compressor Mounting (4) (Replaces: 592185) |
|
$ 7.01 | |||||
| 4 | 753612 | Relay (used W/original Compressor) |
|
- | |||||
| 5 | 753597 | Cover, Relay & Overload Assembly (used W/original Compressor) |
|
- | |||||
| 7 | 753598 | Clamp (used W/original Compressor) |
|
- | |||||
| 8 | W10843121 | Drier (Replaces: 727137) |
|
Immediately | $ 51.42 | ||||
| 9 | 586691 | Harness, Wiring |
|
- | |||||
| 10 | 595325 | Screw, 8-32 X 5/8 |
|
- | |||||
| 20 | 941778 | Overload (used W/service Compressor) |
|
- | |||||
| 21 | 549086 | Spring, Overload (used W/service Compressor) |
|
- | |||||
| 22 | 989646 | Relay (used W/service Compressor) |
|
- | |||||
| 23 | 549336 | Cover, Terminal (used W/service Compressor) |
|
- | |||||
| 24 | 549342 | Strap, Cover (used W/service Compressor) |
|
- | |||||
| 25 | 680975 | Washer, Compressor Mounting (4) |
|
- | |||||
| 27 | QT236WWN | Overload (used W/original Compressor) (Replaces: 753611) |
|
$ 302.49 | |||||
| 28 | 653035 | Clip |
|
- |
