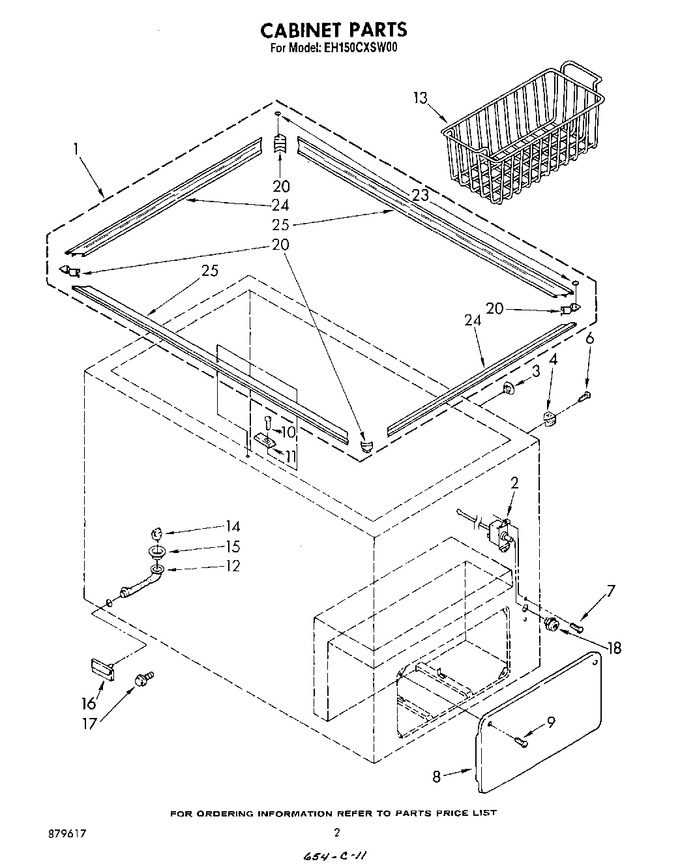

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 702455 | Collar Kit (items 20, 23, 24 & 25 Are Included In Collar Kit) |
|
- | |||||
| 2 | 728368 | Control, Cold |
|
- | |||||
| 3 | 482584 | Plug Button (2) |
|
- | |||||
| 4 | 556013 | Rod Holder Assembly (2) |
|
- | |||||
| 6 | 681672 | Bolt (2) |
|
- | |||||
| 7 | 595022 | Screw |
|
- | |||||
| 8 | 556069 | Door |
|
- | |||||
| 9 | 681318 | Screw |
|
- | |||||
| 10 | 681362 | Screw |
|
- | |||||
| 11 | 730369 | Box, Strike |
|
- | |||||
| 12 | 556624 | Tube, Drain |
|
- | |||||
| 13 | 730212 | Basket |
|
- | |||||
| 14 | 576342 | Plug, Drain |
|
- | |||||
| 15 | 576343 | Ferrule, Drain |
|
- | |||||
| 16 | 576341 | Cover, Drain |
|
- | |||||
| 17 | 594467 | Adapter, Hose |
|
- | |||||
| 18 | 554577 | Knob, Control |
|
- | |||||
| 20 | 728585 | Corner, Front (2) |
|
- | |||||
| 23 | 728362 | Grommet (2) |
|
- | |||||
| 24 | 728412 | Collar, End (2) |
|
- | |||||
| 25 | WP279368 | Cement, Vinyl (1 Pt.) (Replaces: 576269) |
|
Immediately | $ 104.81 | ||||
| 25 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 111.46 | |||||
| 25 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 25 | 728414 | Collar (2) (front & Rear) |
|
- | |||||
| 25 | 978030 | Access Valve (3/4``) |
|
$ 123.53 | |||||
| 25 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | ||||
| 25 | 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 86.78 | ||||
| 25 | 978650 | Kit, Insulation (door Only) |
|
- | |||||
| 25 | WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| 25 | WP978025 | Access Valve (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 25 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 25 | 978026 | Access Valve (5/16``) |
|
Immediately | $ 121.04 | ||||
| 25 | SF5538 | Access Valve (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 25 | 978028 | Access Valve (1/2``) |
|
- | |||||
| 25 | 978029 | Access Valve (5/8``) |
|
$ 93.85 | |||||
| 350930 | Xenamel, White (12 Oz. Spray Can) (Replaces: 799343) |
|
Immediately | $ 36.11 | |||||
| LIT730732 | Energy Guide |
|
- | ||||||
| LIT1108365 | Tech Sheet |
|
- | ||||||
| LIT656493 | Book, How To Freeze |
|
- | ||||||
| 350942 | Xprimer, White (12 Oz. Spray Can) (Replaces: 206922) |
|
$ 84.73 | ||||||
| 206925 | Xleveler, Enamel (12 Oz. Spray Can) |
|
- | ||||||
| LIT879617 | List, Parts |
|
- | ||||||
| LIT730800 | Use & Care Guide |
|
- |
