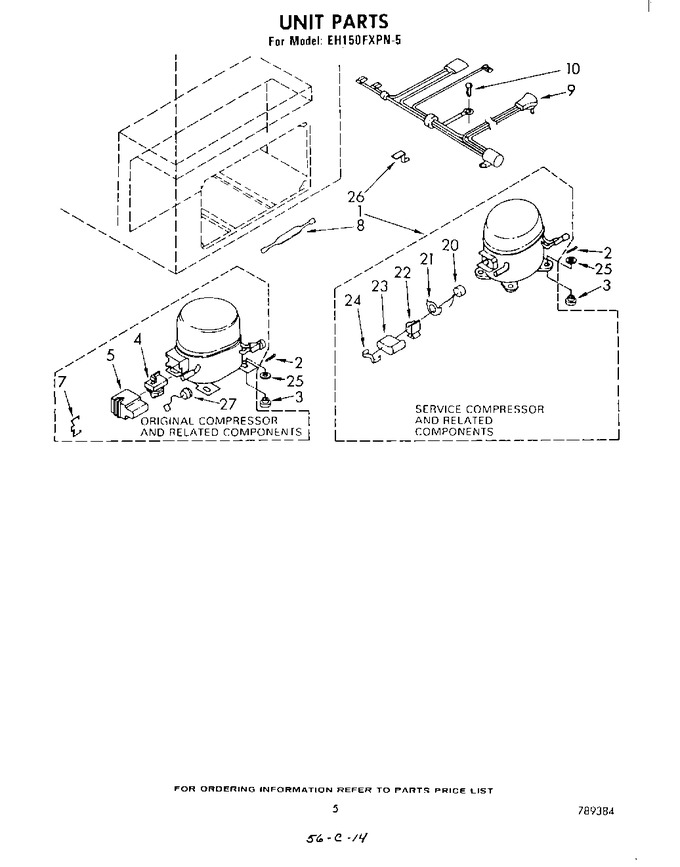

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10439652 | Compressor (service Replacement) (items No. 20, 21, 22, 23 & 24 Included With Service Compressor) (a (Replaces: 702217) |
|
$ 397.98 | |||||
| 2 | 596798 | Clip, Compressor Mounting (4) |
|
- | |||||
| 3 | 876811 | Grommet, Compressor Mounting (4) (Replaces: 592185) |
|
$ 7.01 | |||||
| 4 | 730223 | Relay (used W/original Compressor) |
|
- | |||||
| 5 | 1105015 | Cover, Terminal (used W/original Compressor) |
|
- | |||||
| 7 | 938384 | Clamp (used W/original Compressor) |
|
- | |||||
| 8 | 728583 | Drier |
|
- | |||||
| 9 | 730032 | Harness, Wiring |
|
- | |||||
| 10 | 595325 | Screw, 8-32 X 5/8 |
|
- | |||||
| 20 | 936073 | Overload (used On Service Compressor) |
|
- | |||||
| 21 | 549086 | Spring, Overload (used On Service Compressor) |
|
- | |||||
| 22 | 549500 | Relay (used On Service Compressor) |
|
- | |||||
| 23 | 549336 | Cover, Terminal (used On Service Compressor) |
|
- | |||||
| 24 | 549342 | Strap, Cover (used On Service Compressor) |
|
- | |||||
| 25 | 680975 | Washer, Compressor Mounting (4) |
|
- | |||||
| 26 | 653035 | Clip, Holding |
|
- | |||||
| 27 | 730224 | Overload |
|
Immediately | $ 39.99 |
