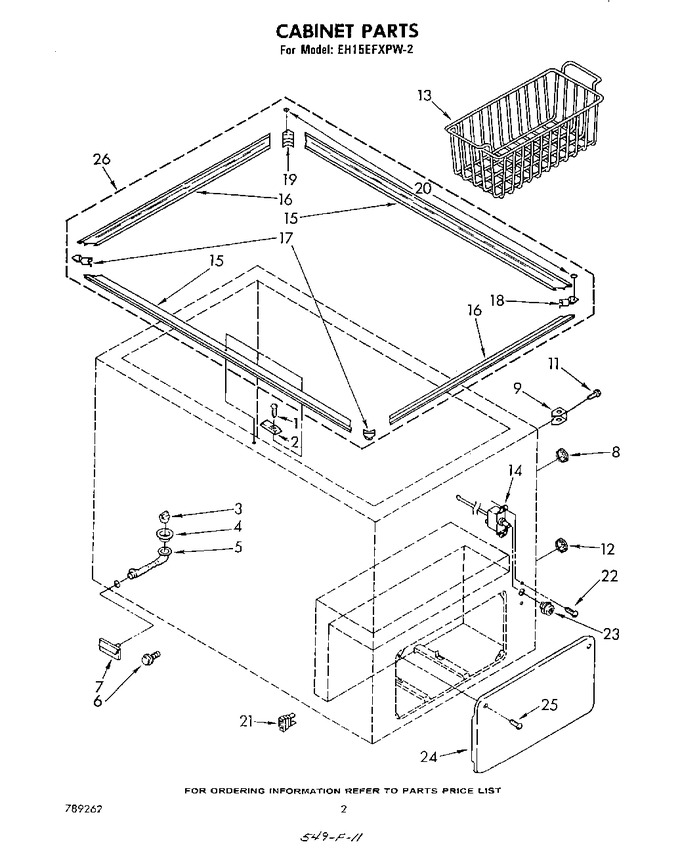

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	681362		Screw		Appelez-nous	-
2	556612		Box, Strike		Appelez-nous	-
3	576342		Plug, Drain		Appelez-nous	-
4	576343		Ferrule, Drain		Appelez-nous	-
5	556624		Tube, Drain		Appelez-nous	-
6	596259		Adapter, Hose		Appelez-nous	-
7	730152		Cover, Drain		Appelez-nous	-
8	482584		Plug Button		Appelez-nous	-
9	556013		Rod Holder Assembly		Appelez-nous	-
11	681672		Bolt, Machine		Appelez-nous	-
12	681494		Plug, Button		Appelez-nous	-
13	730212		Basket (2)		Appelez-nous	-
14	728368		Control, Cold		Appelez-nous	-
15	728414		Collar (2) (front & Rear)		Appelez-nous	-
16	728412		Collar, End (2)		Appelez-nous	-
17	728585		Corner, Front (2)		Appelez-nous	-
18	00702459		Corner (right Rear)   (Replaces: 702459)				$ 405.38
19	00702460		Corner (left Rear)   (Replaces: 702460)				$ 677.02
20	728362		Grommet (2)		Appelez-nous	-
21	556230		Light, Indicator		Appelez-nous	-
22	595022		Screw (2)		Appelez-nous	-
23	554577		Knob, Control		Appelez-nous	-
24	556069		Door		Appelez-nous	-
25	681318		Screw		Appelez-nous	-
26	702455		Collar Kit (items 15, 16, 17 18, 19, And 20 Are Included In Collar Kit)		Appelez-nous	-
