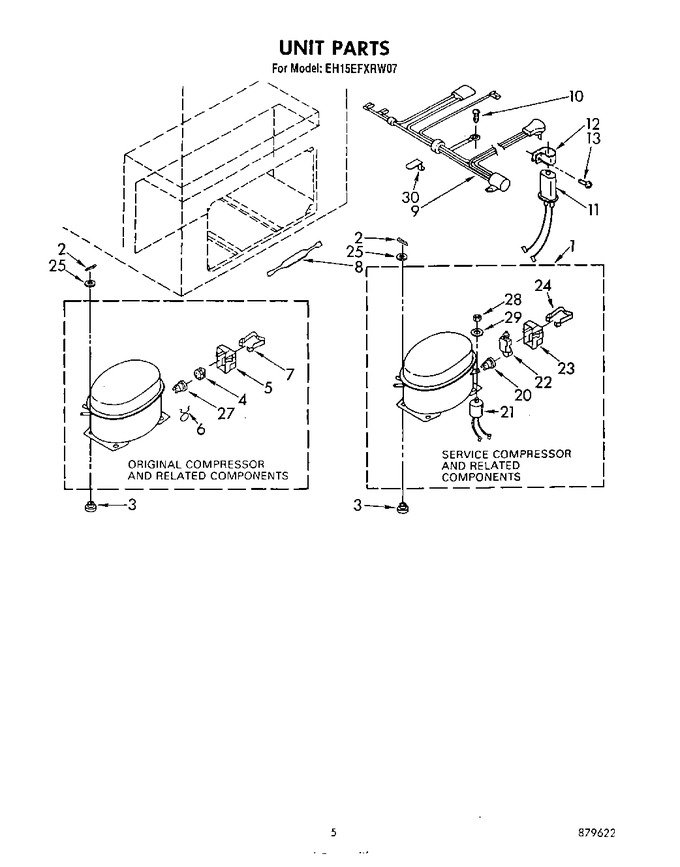

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 482981 | Compressor (service Replacement) (items No. 20, 21, 22, 23, 24, 28, & 29 Included With Service Compr |
|
- | |||||
| 2 | 596798 | Clip, Compressor Mounting (4) |
|
- | |||||
| 3 | 876811 | Grommet, Compressor Mounting (4) (Replaces: 592185) |
|
$ 7.01 | |||||
| 4 | WP2262181 | Relay (used W/original Compressor) (Replaces: 1108143) |
|
$ 115.90 | |||||
| 5 | 1108115 | Cover, Relay & Overload Assembly (used W/original Compressor) |
|
- | |||||
| 6 | 1114190 | Overload, Spring (used W/original Compressor) |
|
- | |||||
| 7 | 938384 | Clamp (used W/original Compressor) |
|
- | |||||
| 8 | 728583 | Drier |
|
- | |||||
| 9 | 1114279 | Harness, Wiring |
|
- | |||||
| 10 | 595325 | Screw, 8-32 X 5/8 |
|
- | |||||
| 11 | 1108074 | Running Capacitor |
|
- | |||||
| 12 | WP43449 | Clamp, Capacitor (Replaces: 1108137) |
|
$ 5.84 | |||||
| 13 | 489050 | Screw |
|
$ 623.30 | |||||
| 20 | 1105077 | Overload (used On Service Compressor) |
|
- | |||||
| 21 | 482996 | Capacitor (used On Service Compressor) |
|
- | |||||
| 22 | 1100806 | Relay (used W/service Compressor) |
|
- | |||||
| 23 | 1105015 | Cover, Terminal (used On Service Compressor) |
|
- | |||||
| 24 | 938384 | Strap, Cover (used On Service Compressor) |
|
- | |||||
| 25 | 680975 | Washer, Compressor Mounting (4) |
|
- | |||||
| 27 | 1114286 | Overload (used W/original Compressor) |
|
- | |||||
| 28 | 489142 | Nut (used W/service Compressor) |
|
- | |||||
| 29 | 489143 | Washer (used W/service Compressor) |
|
- | |||||
| 30 | 653035 | Service, Plug Clip |
|
- |
